PLC Program Control USB Soldering Machine 0.5MPA - 0.8MPA Air Source Pressure
| Certification | CE |
|---|---|
| Model Number | AM121 |
| Minimum Order Quantity | 1SET |
| Price | Negotiation |
| Packaging Details | Exported Wood Package |
| Delivery Time | 5-10 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 sets per moneth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | AC220V | Air Source Pressure | 0.5-0.8MPA |
|---|---|---|---|
| Production/hour | 900-1200PCS | Applicable Wire | 2.6-2.7mm |
| Dimensions | 800*600*1100MM(L*W*H) | Soldering Angle | 90 Degree |
| Soldering Material | Soldering Wire | Mounting | Fall On Ground And Movable |
| Highlight | cable soldering machine,usb cable making machine |
||
Product Description

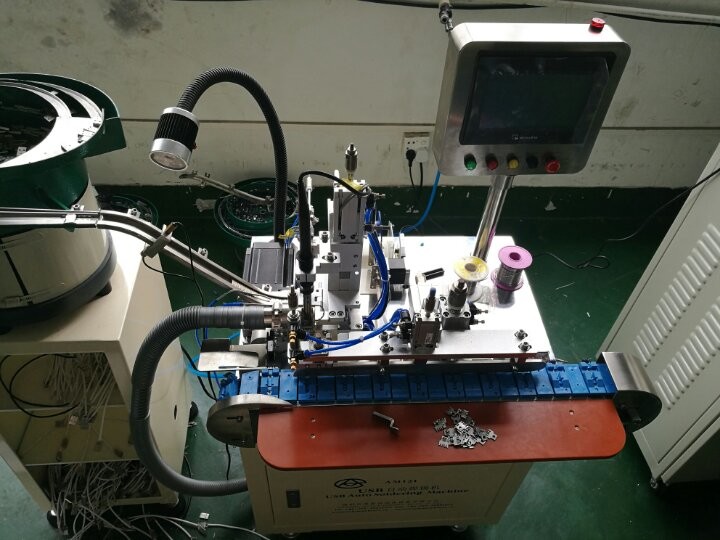

PLC Program Control USB Soldering Machine 0.5MPA - 0.8MPA Air Source Pressure
Features:
Adopted the PLC program control , the data can be set easily on a 7 inches touch screen.
Constant soldering iron temperature , high accuracy digital operation.
Compared with manual welding, this machine can guarantee the tin soldering point symmetrically and firmly ,and save tin wires .
High soldering accuracy ,low defective rate , improve the mass &line production .
Adopted the vibration plate , can realize the function of cable transfer , distributing cables , straighten cables , peeling , slicing ,dipping tin, soldering , unloading materials and CCD test simultaneously.
Semi-automatic and full-automatic can be optional.
Application Range
1) the soldering between USB A Male connector and wire.
2) the soldering between USB B Male connector and wire.
3) the soldering between micro USB connector and wire.
4) the soldering between mini connector and wire.
5) the soldering between iphone connector and wire.
6) the soldering between PCB/Switch and wire.
Scientific and technological progress and customers’ satisfaction have become our growth momentum and aggressive gravity, we will provide with higher-quality products, more professional services, more convincing products, cheaper prices to return customers. Welcome friends from all walks come to visit, guidance and business negotiations, we are sincere cooperation, and create success.
| Voltage | AC220V/110V |
| Power | 600W |
| Air Pressure | 0.5-0.8MPA |
| Productivity | 800-1200pcs/h |
| Dimension | 800*600*1100MM(L*W*H) |
| Mounting | Moving on ground |
| Temp control model | Constant temperature |
| Soldering material | Soldering wire |
| Soldering angle | 90 degree |
