90 Degree Fully Auto USB Soldering Machine AC220V / 110V CCD Test Automatically
| Certification | CE |
|---|---|
| Model Number | AM121 |
| Minimum Order Quantity | 1SET |
| Price | Negotiation |
| Packaging Details | Exported Wood Package |
| Delivery Time | 5-10 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 sets per moneth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | AC220V | Air Source Pressure | 0.5-0.8MPA |
|---|---|---|---|
| Production/hour | 900-1200PCS | Applicable Wire | 2.6-2.7mm |
| Dimensions | 800*600*1100MM(L*W*H) | Soldering Angle | 90 Degree |
| Soldering Material | Soldering Wire | Mounting | Fall On Ground And Movable |
| Highlight | cable soldering machine,usb cable making machine |
||
Product Description
90 Degree Fully Auto USB Soldering Machine AC220V / 110V CCD Test Automatically
Features:

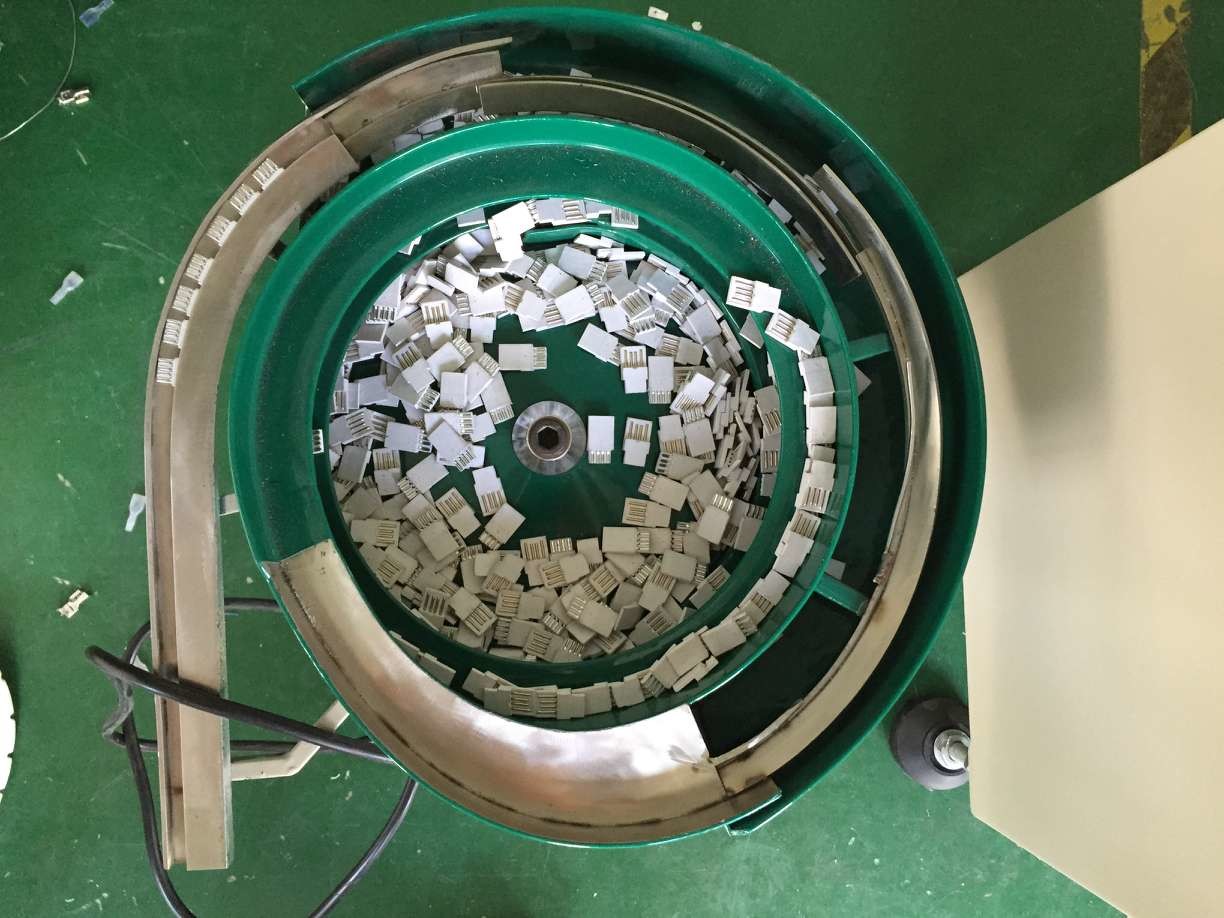

The fully automatic soldering machine is designed to solder the USB data cables /lines automatically. With the adoption of vibration plate , it can realize the founction of cable transfer , separating cables , straighten cables , peeling , slicing ,dipping tin, soldering , unloading materials and CCD test automatically. It has completely altered the traditional welding procedure , making the labors liberate from the up to 300 ℃ high soldering iron temperature .And it also makes their job easier from holding cables , soldering wires and terminals to the single action of placing the wires on the welding slot. Workers can operate the machine without any training , and this machine also can improve the products’quality & working efficiency. In addition, the machine perform better in the comprehensive usage of operation , maintenance ,stability, good product rate and yield , equivalent with 3-4 skiled workers efficiency. The soldering robot can fully meet the standards of fast speed , high accuracy of soldering temperature and solder wires. This machine has won the favorable reputation from home and abroad with the high occupation in the market .
Application Range
1) the soldering between USB A Male connector and wire.
2) the soldering between USB B Male connector and wire.
3) the soldering between micro USB connector and wire.
4) the soldering between mini connector and wire.
5) the soldering between iphone connector and wire.
6) the soldering between PCB/Switch and wire.
| Voltage | AC220V/110V |
| Power | 600W |
| Air Pressure | 0.5-0.8MPA |
| Productivity | 800-1200pcs/h |
| Dimension | 800*600*1100MM(L*W*H) |
| Mounting | Moving on ground |
| Temp control model | Constant temperature |
| Soldering material | Soldering wire |
| Soldering angle | 90 degree |
