Fully Automatic Usb Cable Making Tin Soldering Machine 90 Degree Soldering Angle
| Certification | CE |
|---|---|
| Model Number | AM121 |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Exported Wood Package |
| Delivery Time | 5-10 working days after confirmed all details |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 sets per moneth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | AC220V | Air Source Pressure | 0.5-0.8MPA |
|---|---|---|---|
| Production/hour | 900-1200PCS | Applicable Wire | 2.6-2.7mm |
| Dimensions | 800*600*1100MM(L*W*H) | Soldering Angle | 90 Degree |
| Soldering Material | Soldering Wire | Mounting | Fall On Ground And Movable |
| Machine Name | Top Selling Automatic USB Cable Making Tin Soldering Machine | ||
| Highlight | cable soldering machine,automatic wire soldering machine |
||
Product Description
Fully Automatic Usb Cable Making Tin Soldering Machine 90 Degree Soldering Angle
Features:
High speed,tight design,safe and easy operation
Working videos as below:
A male: https://www.youtube.com/watch?v=Nt1hDQPLdr8
Iphone: https://youtu.be/glziT0slOP8
Type-C: https://www.youtube.com/watch?v=XPXG6kTfIUs
Applicable cable:
Round cable,flat cable and multi-cores cable.
Applicable connector:
USB A Male,USB B female,Micro USB connector,MINI connector,iPhone connector and PCB/swtich.
Specifciations:
Voltage :AC220V/110V
Power :600W
Air Pressure: 0.5-0.8MPA
Productivity: 800-1200pcs/h
Dimension: 800*600*1100MM(L*W*H)
Mounting: Moving on ground
Temp control model: Constant temperature
Soldering material: Soldering wire and connectors
Soldering angle: 90 degree.

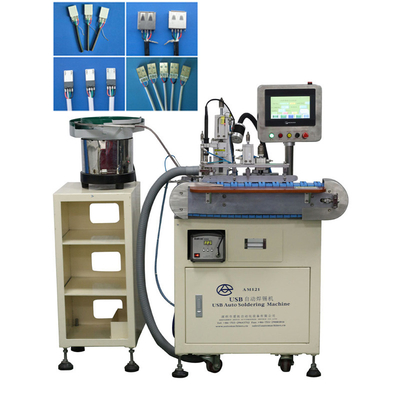

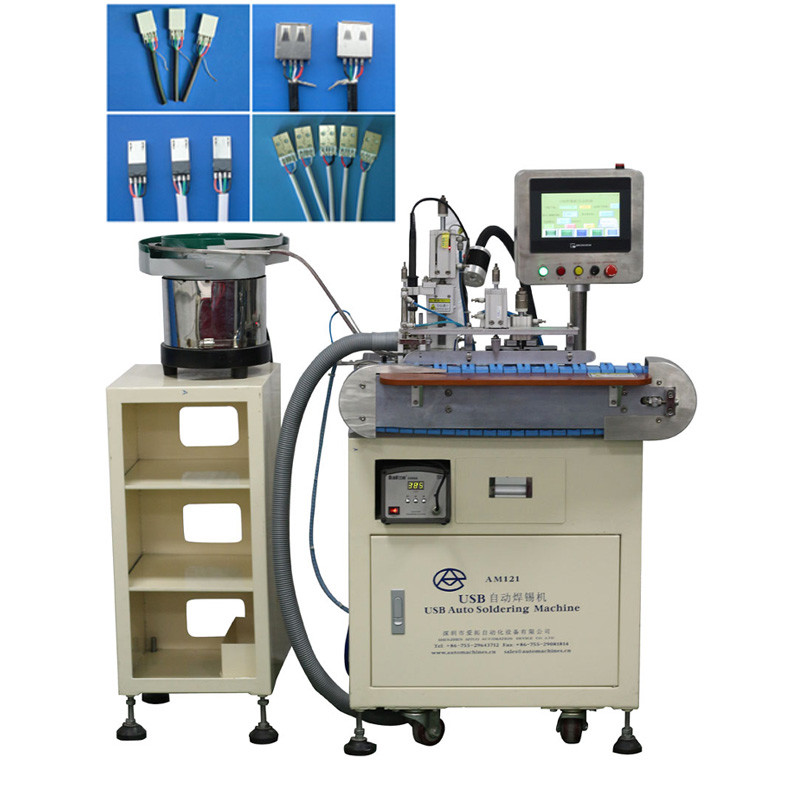

Machine photos:

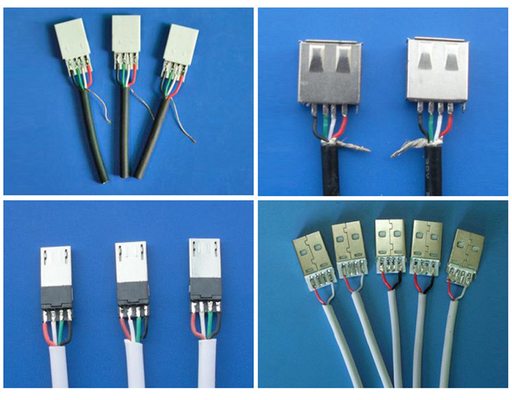

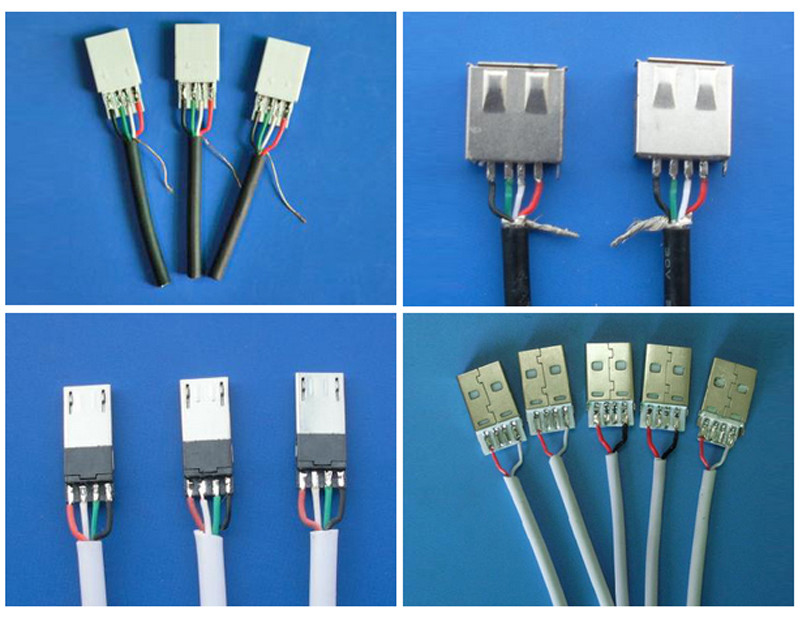

Finished samples:
