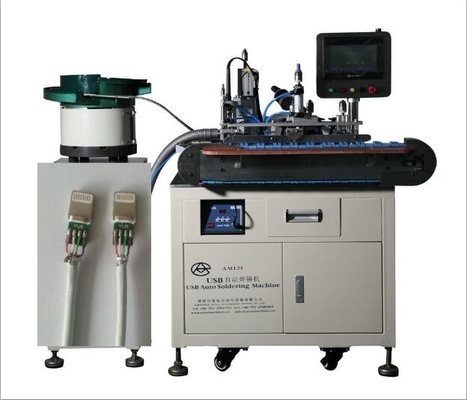

Movable 600W USB Soldering Machine For Mobile Phone Plug 800×600×1100 MM
| Certification | CE |
|---|---|
| Model Number | AM121 |
| Minimum Order Quantity | 1SET |
| Price | Negotiation |
| Packaging Details | Exported Wood Package |
| Delivery Time | 5-10 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 sets per moneth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | AC220V-230V | Air Source Pressure | 0.5-0.8MPA |
|---|---|---|---|
| Production/hour | 1300PCS | Applicable Wire | 2.6-2.7mm |
| Dimensions | 80*60*110CM(L*W*H) | Soldering Angle | 90° |
| Soldering Material | Soldering Wire | Mounting | Fall On Ground And Movable |
| Highlight | cable soldering machine,usb cable making machine |
||
Product Description
Movable 600W USB Soldering Machine For Mobile Phone Plug 800×600×1100 MM
Features:
This machine is the newly developed automation machine of Shenzhen Aituo Automation Device Co., Ltd. With advanced structure,easy maintenance,ease of operation,long life,high output, stable performance,environmental protection and so on. Procedures of stripping, cutting flush,Wire Bonding, plastic shell loading are automatically finished.Largely decrease the labor cost and reduce the user’s labor intensity. it solves the problem which hard soldering procedure environment,ensure safe and comfortable operating environment.
Application Range
1) the soldering between USB A Male connector and wire.
2) the soldering between USB B Male connector and wire.
3) the soldering between micro USB connector and wire.
4) the soldering between mini connector and wire.
5) the soldering between iphone connector and wire.
6) the soldering between PCB/Switch and wire.
| Voltage | AC220V/110V |
| Power | 600W |
| Air Pressure | 0.5-0.8MPA |
| Productivity | 800-1200pcs/h |
| Dimension | 800*600*1100MM(L*W*H) |
| Mounting | Moving on ground |
| Temp control model | Constant temperature |
| Soldering material | Soldering wire |
| Soldering angle | 90 degree |
Our Services
Guaranteed And After-sales service
1. Based on the principle of "quality first, integrity and innovation, to meet the demands of customers"
2. Help customers to select right model which meets thier detailed and specilized needs.
3. Guide customers debugging and install machine and train first user of machine
4. Provide Warranty Service and post-guaranty services.Our technical Team will do help
With 3 inductors to ensure the quality of cable, therefore, we are the only one who has such superiority in the soldering industry in china.
Enclosed is the specification of the machine and here you are the video link for different connectors:
A male: https://www.youtube.com/watch?v=Nt1hDQPLdr8
Iphone:https://youtu.be/glziT0slOP8
Type-C : https://www.youtube.com/watch?v=XPXG6kTfIUs
