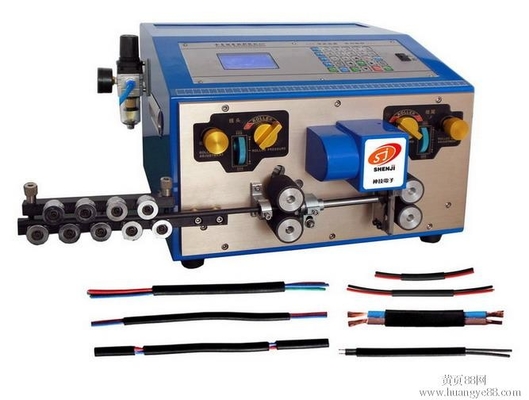

Dual Conduit Automatic Wire Cutting Stripping Machine For Patch Cord Cable
| Certification | CE |
|---|---|
| Model Number | AM606 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in wooden box |
| Delivery Time | 5 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Set / Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Available Wire Size | 0.1-6mm²(single Wire) 0.1-2.5mm²(double Wire) | Power | 300W |
|---|---|---|---|
| Voltage | AC110/220V 50/60HZ | Productivity | 5000-15000pcs/h (L=100mm) |
| Cutting Length | 1-100000mm | Cutting Tolerance | ±0.002 *L( Cutting Length) |
| Stripping Length | Head:0-30mm Tail:0-20mm | Max Conduit Diameter | Ø6mm (dual Conduit) |
| Highlight | wire stripping and cutting machine,wire cutter stripping machine |
||
Product Description
Dual Conduit Automatic Wire Cutting Stripping Machine For Patch Cord Cable
The recent tendency of electronic products, light, thin, short, small, so the wires tend to be thin, short and high precision, the machine is able to play its greatest strength. The past is as difficult to machining 50mm short-term, there is no any difficulty, even total length of only 1mm, both ends of the 0.3mm also.
At the same time can be set individually wire feeding, feed, tool and peeling and peeling speed, for isolated lines can also be forced peeling to 99mm, eliminate the previous line of separation can not fully stripping and injury to the troubled heart line. The scene clearly, size set clearly displayed on the LCD panel.
All kinds of wire diameter, size, by setting. patch cord cable Can easily set the required processing wire size. Even if there is a set of error cases, computer can immediately alarm, and indicates the error setting where, in the modified.
The number of required wire can also be set, the total number, and can be displayed clearly. Two wires can be processed at the same time .Short, thin, ultra precision cutting function. Capable of processing two wires, yield increase.
The two lines at the same time, cut off, at the same time as the most advanced peeling machine, also can only cut and strip one wire. For cutting samples and mass production can handle a situation with ease, economic efficiency is very high.
| Available wire size | 0.1-6mm²(single wire) 0.1-2.5mm²(double wire) |
| Voltage | AC110/220V 50/60HZ |
| Display | LCD screen |
| Power | 300W |
| Dimension | 450*365*265mm |
| Weight | 31KG |
| Cutting length | 1-100000mm |
| Cutting tolerance | ±0.002 *L( Cutting length) |
| Truncation error | Can correct |
| Stripping length | Head:0-30mm Tail:0-20mm |
| Twisting length | Head:0-30mm Tail:0-20mm |
| Twisting method | Two head twisting or on head twisting |
| Max middle stripping section | 16 stripping |
| Max conduit diameter | Ø6mm (dual conduit) |
| Memory function | Can store MAX 99 program |
| Suitable cable | PVC/Teflon/silicone cable/glass fiber wire etc |
| Blade Material | Hard tungsten steel(imported white steel optional) |
| Productivity | 5000-15000pcs/h (L=100mm) |
| Drive mode | Four-wheel drive |
