AM601 Automatic cable and wire stripping machines fast speed up to 5000pcs
| Certification | CE |
|---|---|
| Model Number | AM601 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in wooden box |
| Delivery Time | 5 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Set / Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Available Wire Size | 0.1-2.5mm²(AWG14#-AWG32#) | Power | 200W |
|---|---|---|---|
| Voltage | AC110/220V 50/60HZ | Productivity | 5000-15000pcs/h (L=100mm ) |
| Cutting Length | 1-9999mm | Cutting Tolerance | ±0.002 *L( Cutting Length) |
| Stripping Length | Head:0-35mm Tail:0-15mm | Max Conduit Diameter | Ø5mm |
Product Description
AM601 Automatic cable and wire stripping machines fast speed up to 5000pcs
This wire stripping machine is special for cutting and stripping AWG#14~AWG32# wire range.
it also efficiently and precisely process multi strand wires up to Max. 4.5mm², low price/good performance .
Apply for:
It is widely used in the electronics industry, such as the city ahs, electrical appliances, motor, lamps, toys, and other various products of wire processing.
Available wire material such as PVC/teflon/silica gel line /Fiber Glass Wire, etc.
Specifications:
| Model | AM601 (Economy type) |
| Available Core Cross-Section Range | 0.1 - 2.5mm2 (AWG14 - AWG32) |
| Conduit Diameter | Φ4.5mm |
| Cutting Length | 1 - 9999mm |
| Stripping Length | Head 0 - 35mm, Tail 0 - 15mm |
| Memory Function | Can store Max. 99 group programs |
| Max. Middle Stripping Section | 11 |
| Cutting Tolerance | ±(0.002×L) (L = Cutting Length) |
| Speed | 3000 - 8000pcs/hour |
| Display | LCD english display |
| Drive Mode | two wheels drive |
| Blade Material | Hard tungsten steel |
| Appropriate Wire | Suitable wires, such as PVC, Teflon, glass wires etc. |
| Power Supply | 220V/50Hz 110V/60Hz |
| Power Rating | 160W |

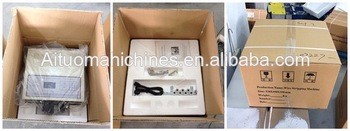

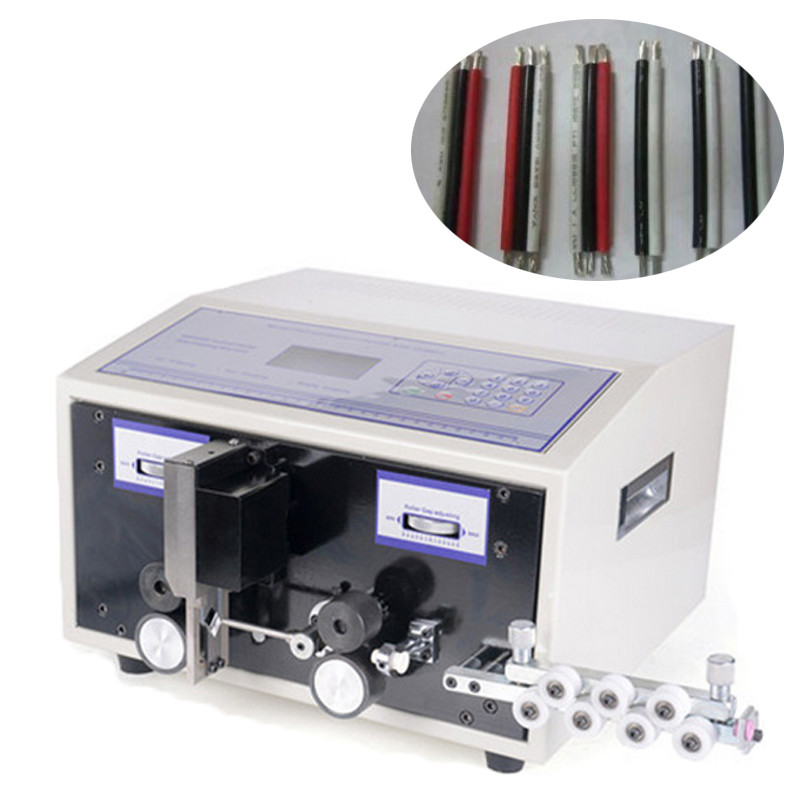

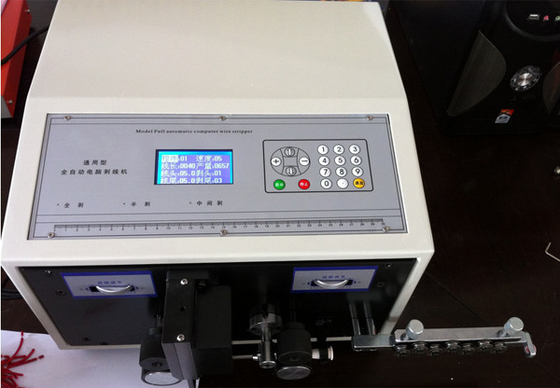

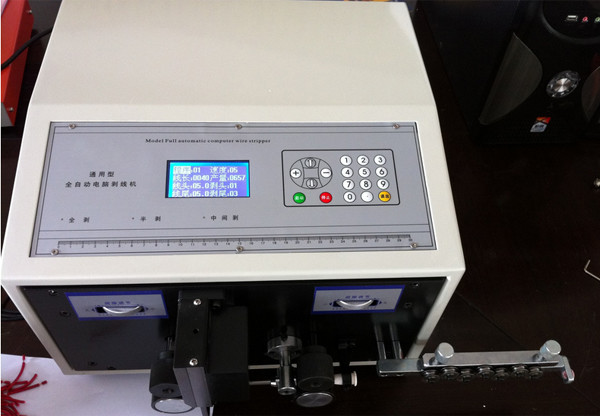

Machine Photos
Sample:
This machine can help you save labor cost and production time, also its price very competitive, if you have any interests, please contact me by email: export(at)automachines.cn. we are willing to help you.
