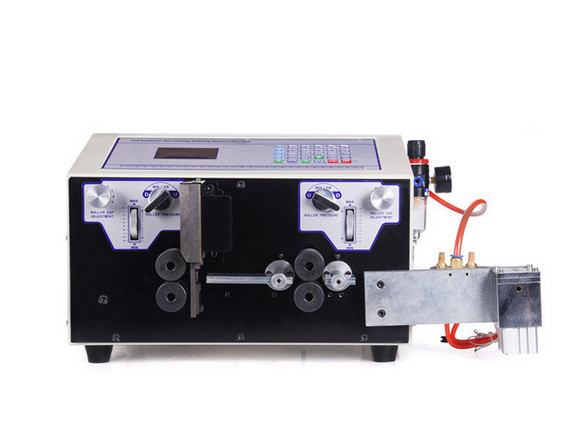

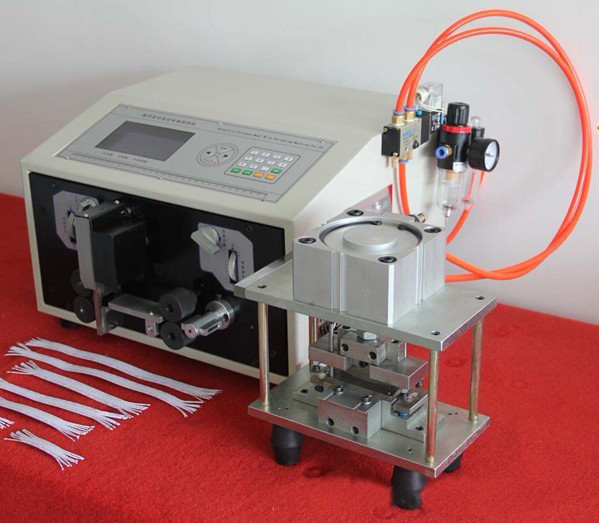

4P Flat Cable Led Automatic Wire Cutting Stripping Machine With Splitting
| Certification | CE |
|---|---|
| Model Number | AM606 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in wooden box |
| Delivery Time | 5 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Set / Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Available Wire Size | 0.1-4.5mm²(AWG10#-AWG32#) | Power | 300W |
|---|---|---|---|
| Voltage | AC110/220V 50/60HZ | Productivity | 3000-5000pcs/h (L=100mm ) |
| Cutting Length | 1-60000mm | Cutting Tolerance | ±0.002 *L( Cutting Length) |
| Stripping Length | Head:0-50mm Tail:0-40mm | Max Conduit Diameter | Flat Conduit:80*7*5mm |
| Highlight | wire stripping and cutting machine,wire cutter stripping machine |
||
Product Description
4P led wire cutting stripping machine with splitting function
Specifications:
1) ul2651 flat cable stripping machine
2) Wire Gauge Range: AWG8 ~ AWG32
3) Cutting Length: 1mm ~ 150000mm
| Model | AM68 4P led wire cutting stripping machine with splitting function |
| Nax splitting cable pitch | 12P flat cable |
| Cutting Length | 1 - 150000mm |
| Stripping Length | Head 0-50mm, Tail 0-50mm |
| Memory Function | Store Max. 99 group programs |
| Max. Middle Stripping Section | 13sections |
| Cutting Tolerance | ±(0.002×L) (L = Cutting Length) |
| Speed | 3000 - 5000pcs/hour |
| Display | LCD display with English and Chinese menu |
| Drive Mode | Four wheels drive |
| Blade Material | Hard tungsten steel or imported white steel optional |
| Power Supply | 220V/50Hz 110V/60Hz |
| Power Rating | 350W |
| Size | 420x390x280mm |
| suitable wire sheath material | Suitable for kinds of wires, such as PVC, Teflon, glass wires etc |
| Certificate | CE |
| Weight | 33kg |
Features:
This molde is special for splitting,cutting and stripping flat cables,only need to setting the splitting length,cutting length,stripping length and total quantity,all data can setting on LCD operation panel easily,then this machine can splitting,cutting and stripping cable automatically.
