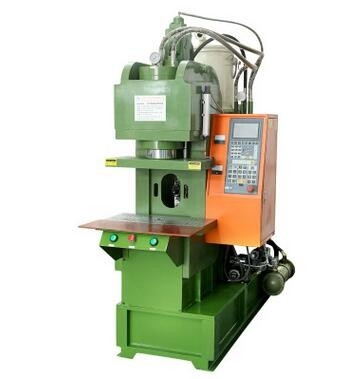

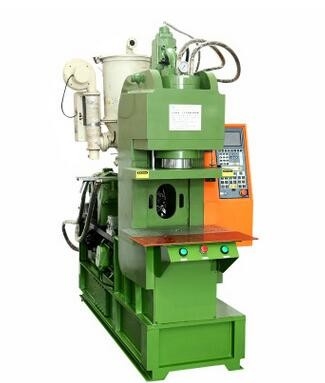

AC Power Cords Vertical Injection Molding Machine 5.8 Tons Screw Type

  • AC Power Cords Vertical Injection Molding Machine 5.8 Tons Screw Type
  • AC Power Cords Vertical Injection Molding Machine 5.8 Tons Screw Type
Certification CE
Minimum Order Quantity 1 set
Price negotiation
Packaging Details export standard wooden package
Delivery Time 10-15 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 5.8 Tons Dimension 3.4*1.4*2.5m
Heating Power 8.5kw Motor Power 11/15HP
Injection Rate 190mm Screw Diameter 32mm 38mm 42mm
Highlight

vertical plastic injection moulding machine

,

vertical injection moulding machine
Leave a Message
Product Description

AC Power Cords Vertical Injection Molding Machine 5.8 Tons Screw Type​



Specification


Injection Unit		 Screw Diameter mm 32 38 42 40 45 50
Injection Pressure Kg/cm² 1506 1063 870 2396 1842 1533

Theoretical Shot Volume		 Cm³ 153 215 263 251 318 393

Max. Shot Weight(PS)		 g 139 196 239 228 289 357

Max. Shot Weight(PS)		 cm2/sec 52 75 92 39.2 49.7 61.4
Injection Rate mm 190 200
Nozzle Stroke mm 170 180

Nozzle Contact Force		 tons 1.5 1.76
Screw Speed r.p.m 0-175 0-160
  Platen Size mm 480*280 580*330
Clamping Force tons 55 85

Min mold height		 mm 215 285

openning stroke		 mm 200 280
max open daylight mm 415 565
Ejector force tons 1.5 2.2
Ejector Stroke mm 135 135

Electrical Equipment&Ceneral
Oil Tank Caoacity		 l 280 300
Shipping Size m 3.1*1.3*2.3 3.6*1.5*2.7
Shipping Weight tons 5 6.5

Cooling Water Consumption		 L/hr 800-1000 1000-1200
Drive Motor KW/HP 7.5/10 11.0/15.0
heater KW 4.35 8.5
Dimension m 3*1.2*2.1 3.4*1.4*2.5
Weight tons 4.4 5.8



AC Power Cords Vertical Injection Molding Machine 5.8 Tons Screw Type 0
