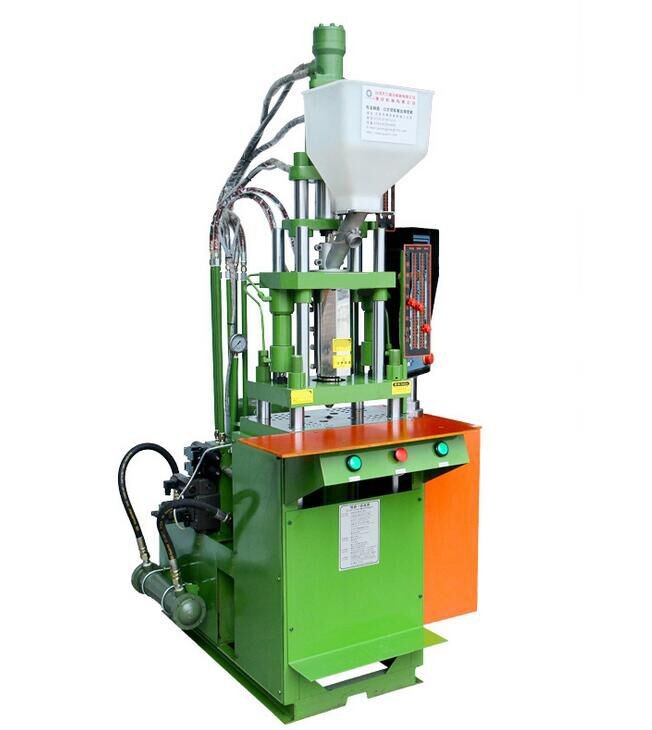

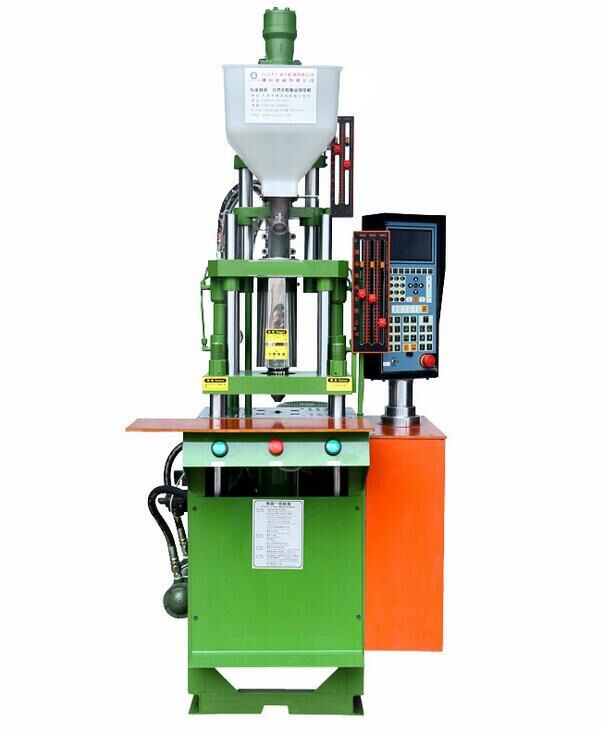

55T Vertical Plastic Injection Moulding Machine 2160Kg / M2 Injection Pressure

  • 55T Vertical Plastic Injection Moulding Machine 2160Kg / M2 Injection Pressure
  • 55T Vertical Plastic Injection Moulding Machine 2160Kg / M2 Injection Pressure
Certification CE
Model Number AM-701 5.5T
Minimum Order Quantity 1 SET
Price negotiation
Packaging Details export standard wooden package
Delivery Time 7-10 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Weight 3.3tons Machine Diemensions 1.85*1.3*3.0 M
Pump Motor Power 7.5/10HP Clamping Force 55t
Inection Pressure 2160kg/㎡ Platen Size 670*480mm
Highlight

vertical injection moulding machine

,

clamping system injection molding machine
Leave a Message
Product Description

55T Vertical Plastic Injection Moulding Machine 2160Kg / ㎡ Injection Pressure​





  model unit AM701-55T
 injection unit screw Diameter mm 30
  Inection Pressure kg/㎡ 2160
  Theoretical Shot Volume m3 103
  Max.Shot Weight(PS) g 90
  Safe Shot Weight(PS) OZ 3
  Max.Shot Weight(PS) m3 /sec 36
  Injection Rate mm 140
  Screw Speed Max rpm 0-175
  Nozzle Comtact Force Tons 5.5
  Number of Temterature Control   3
clamping unit Clamping Force Tons 55
  Platen Size mm 670*480
  Distance Between Tie Bere mm 470*280(480)
  Min. Mold Height mm 250/220
  Opening Stroke mm 200
  Max.Open Daylight mm 470/270
  Ejetor Force Tons 1.5
  Ejetor Stroke mm 35
power/heating unit Max. Hydaulic Pressure kg/c㎡ 140
  Pump Output L/min 40
  Oil Reservior Capacity L 150
  Cooling Wear Consumption L/hr 800-1000
  Pump Motor Power KW/HP 7.5/10HP
  Berrel Heating Power KW 4.5
  Total Weight KW 12
 others Machine Weight Tons 3.3
  Machine Diemensions m 1.85*1.3*3.0
  Shipping weight Tons 3.4
  Shipping Measurements(L*W*H) m 2.0*1.4*2.3



55T Vertical Plastic Injection Moulding Machine 2160Kg / M2 Injection Pressure 0
