High Grade Vertical Injection Molding Machine With 35T Clamping Force , Fast Speed
| Certification | CE certification |
|---|---|
| Model Number | AM701-3.5T |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden carton |
| Delivery Time | 15 days after payment |
| Payment Terms | T/T, Western Union |
| Supply Ability | 150pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AM701-3.5T | Model AM701-3.5T Screw Diameter | ¢32 Mm |
|---|---|---|---|
| Injection Capacity | 96cm3 | Injection Weigh | 110g |
| Max.shot Weight | 58cc/s | Screw Stroke | 0-200mm |
| Screw Speed Rotation | 0-150r.p.m. | Nozzle Contact Force | 2.4tf |
| Clamping Force | 35tons | Clamping Stroke | 215mm |
| Max Mold Space | 360mm | Min.thickness Of Mold | 145mm |
| Hydraulic Ejector Force | 0.7tf | ||
| Highlight | vertical plastic injection moulding machine,vertical injection moulding machine |
||
Product Description

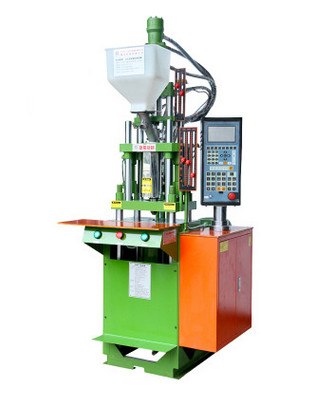

High Grade Vertical Injection Molding Machine With 35T Clamping Force , Fast Speed
Tehnical Parameters:
| Model | AM701-3.5T |
| Screw diameter | ¢32 mm |
| Injection capacity | 96cm3 |
| Injection weigh | 110g |
| Max.shot Weight | 58cc/s |
| Screw stroke | 0-200mm |
| Screw speed rotation | 0-150r.p.m. |
| Nozzle contact force | 2.4tf |
| Clamping force | 35tons |
| Clamping stroke | 215mm |
| Max mold space | 360mm |
| Min.thickness of mold | 145mm |
| Hydraulic ejector force | 0.7tf |
| injector stroke | 28mm |
| Injection pressure | 1367kg/cm3 |
| Oil tank capacity | 160L |
| Dimensions | 1400x1100x3200mm |
| weight | 1.1t |
| Drive motor | 7.5kw |
High Grade Vertical Injection Molding Machine Features:
1.Vertical clamping / injection, suits for injection of common plugs and Small electronic parts.
2.Two or three-sections temperature control, adjustable injection speed and screw speed,is suitable for various kinds of precision engineering plastic part shaping.
3.High speed with low pressure clamping, the clamping will open when there is exceptional condition.
4.Fixed Lower mould and movable upper die. Strong polarization for the insert items, the ejection device is included.
5.Adopts imported fittings, low noise, high efficiency, high life-span, unique design, safeeasy to operate and maintenance.
6.Can add single sliding or double sliding to improve the production and safety.
Finished Samples:
Thanks for your kindly reading, If you want to know more please contact us.
