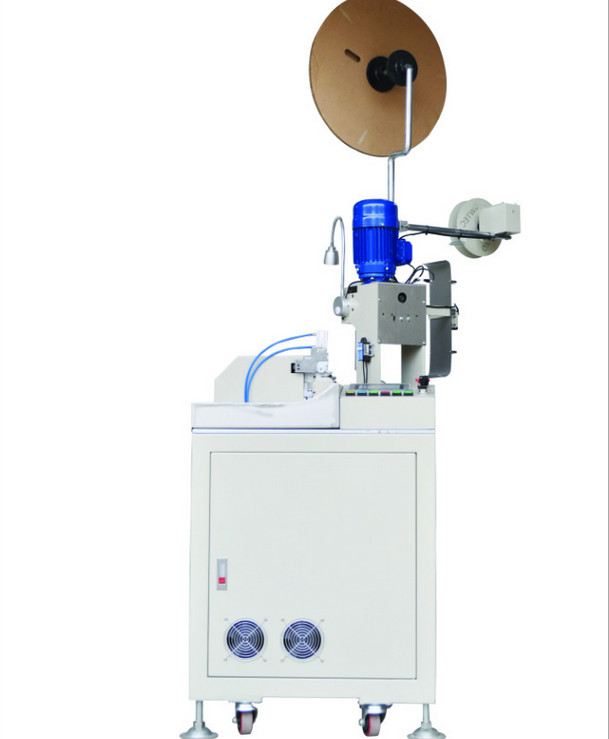

5000 Pcs Per Hour Wire Cutting Stripping And Crimping Machine No Twisting
| Certification | CE |
|---|---|
| Model Number | AM-203 |
| Minimum Order Quantity | 1set |
| Price | negotiation |
| Packaging Details | Strong export wooden box package |
| Supply Ability | 50SETS Per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Wire Cutting, Single-end Stripping, Both-end Stripping,single-end Crimping. | Wire Specification | AWG#32-AWG#14 |
|---|---|---|---|
| Cutting Length | 20mm-9999mm | Cutting Accuracy | 1mm+cutting Length |
| Stripping Length | 0.1mm-10mm | Air Pressure | 0.5mpa(need Clean And Dry Air) |
| Highlight | automatic crimping machine,cable wire crimper |
||
Product Description
5000 Pcs Per Hour Wire Cutting Stripping And Crimping Machine No Twisting
Specification
1. 5000pcs/hour. full-automatically cut wire, one end terminal stripping/peeling.
2. High definition LED screen display, language of HMI can be customized as customer’s need,
3. Full automatically computerized, accurate parameter debugging
4. Complete Detection function:wire detection,terminal detection,alarm when machine run wrong
5. OTP transverse mode and Direct mode change easily,automatic receive wastes of terminals, cut wastes of terminals
Automatic terminal crimping machine(One end of terminal crimping)
Charactors:Cutting wire,stripping of wire(Single-end and two ends stripping),Single-end
crimping,Single-end twisting,,Multi-style of peeling wire
Parameters
|
Model |
AM203 |
Voltage |
AC220V/50HZ |
|
Function: |
Wire Cutting, Single-end Stripping, Both-end Stripping,single-end Crimping. |
Productivity |
5000 Pcs/h(Within 100mm) |
|
Wire Specification |
AWG#32-AWG#14 |
Cutting Length |
20mm-9999mm |
|
Cutting Accuracy |
1mm+cutting Length |
Stripping Length |
0.1mm-10mm |
|
Crimping Capacity |
1500KG |
Twisting Length |
No twisting |
|
Air Pressure |
0.5mpa(need Clean And Dry Air) |
Testing Equipment |
Iinduction ,No Wire ,unsound Touch |
|
Dimension |
700W*620L*1000H(mm) |
Weight |
260kg |
Wire crimping result
