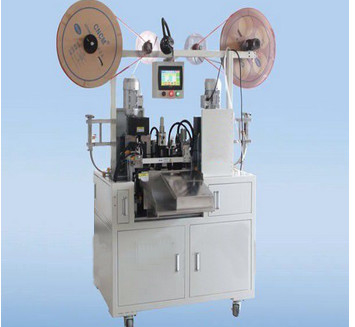

Fully Automatic Wire Cutting And Crimping Machine 4800PCS / H 0.5 MPA Air Pressure
| Certification | CE |
|---|---|
| Model Number | AM202 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in strong export wooden box. |
| Delivery Time | 15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 Sets Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AM202 | Voltage | AC220V |
|---|---|---|---|
| Productivity | 4800PCS/H | Wire Specification | (0.05mm² -- 2.0mm²) |
| Cutting Length | 40mm-9999mm | Cutting Accuracy | 0.5mm+(Set Cutting Length ×0.002) (Cutting Length Less 100mm) |
| Stripping Length | (Front-end)：1.00～15.00/25.00mm (back-end):1.00～8.00mm | Crimping Capacity | 2.0T |
| Twisting Length | 2mm-20mm | Air Pressure | 0.5 MPA |
| Highlight | automatic crimping machine,cable crimping machine |
||
Product Description
Fully Automatic Wire Cutting And Crimping Machine 4800PCS / H 0.5 MPA Air Pressure
Features:
1. Computer adjust the blade, no need the gasket.
2. The rear-end support half stripping, if assemble the twister,can twist wire at the rear-end.
3. WEINVIEW 7 inch operating screen, English display
4. Pneumatic component use Tai wan brands
5. Servo: 32 bits the single-chip processor
6. Guide rail: HIWIN. Reduction drive: PHT.
Automatic wire cutting stripping and crimping machine adopts procedural control interface with touch screen LCD display,it has operate system in Chinese and English, easy to operate and stable performance.Fast send wire ,cut wire,strip wire and crimp the terminals,high precision, fast speed,front and rear swing arms are both controlled by servo,and ultra low noise,more stable.The length of sending/cutting/stripping wire,and the delay time of crimping,which all can be accomplished by digital configuration.
| Model | AM202 |
| Size | L1000mm*W800mm*H1450mm |
| Weight | 300kg |
| Display | English LCD Touch screen |
| Voltage | AC220/50Hz,AC110/60Hz Single phase |
| Productivity | Both ends crimping:4800pc./h |
| Cutting Length | 40 mm—9999 mm |
| Cutting Tolerance | 0.5mm+(Set cutting length ×0.002) (Cutting length less 100mm) |
| Twisting Length | 2mm-20mm |
| Stripping Length |
(Front-end):1.00～15.00/25.00mm (back-end):1.00～8.00mm |
| Section Area of wire | AWG32#-AWG14#(0.05mm2-2.0mm2) |
| Wire suitable | Electrical wire,high temperature wire and so on |
| Blade material | Tungsten steel/alloy metal |
| Drive style | Four wheel drive |
| Air pressure | 0.5 MPA |
| Crimping force | 1.0T/1.5T/2.0T |
| Available applicator | Side Applicator,End Applicator |
