Both End Automatic Wire Crimping Machine CE Approved for 10mm Cable Head
| Certification | CE |
|---|---|
| Model Number | AM205 |
| Minimum Order Quantity | 1set |
| Price | negotiation |
| Packaging Details | export wooden case package |
| Supply Ability | 50SETS Per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutting Length | Can Be Adjusted | Cutting Accuracy | Cutting Length *0.2% |
|---|---|---|---|
| Stripping Length | Cable Head 10mm, Cable Tail 14mm | Function | Double Cable Combined Terminal Crimping |
| Dimension | 750mm*850mm*1700mm | Weight | 420kg |
| Highlight | automatic crimping machine,cable crimping machine |
||
Product Description

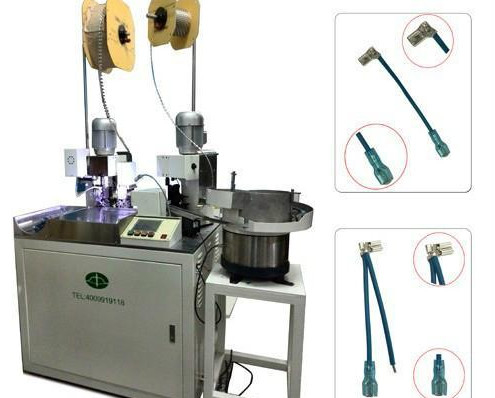

Both End Automatic Wire Crimping Machine CE Approved for 10mm Cable Head
Characters:
1. Compact and high spped full automatic terminal crimping machine(JQ-1). High productivity and reiability using a positioning unit by servo motor and double drive wire feed unit. The outs tanding performance of the machine can be guaranteed by its;
2. Modularized edsign, proram logic control;
3. Structurized software design technology;
4. Advanced data-exchange scheme pre-feeder not required.
Specification
| Model | AM 205 |
| Applicable wire size | AWG16-AWG28 |
| Cutting length | Can be adjusted |
| Cutting accuracy | Cutting length *0.2% |
| Stripping lengh | Cable head 10mm, cable tail 14mm |
| Pressing capacity | 1.5T |
| Detection device | Auto induction system |
| Voltage | AC220V/50HZ |
| Air pressure |
0.5MPA |
| Dimension | 750mm*850mm*1700mm |
| Weight | 420kg |
All machines we sell will be packed with wood box, covered with steel tie on the surface in order to avoid damaging during delivery.
