Hydraulic Abs Plastic Vertical Injection Molding Machine Low Pressure Automatic
| Certification | CE |
|---|---|
| Model Number | AM701-3.0T |
| Minimum Order Quantity | 1Set |
| Packaging Details | wooden carton |
| Delivery Time | 15 days after payment |
| Payment Terms | T/T, Western Union |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Screw Injection |
|---|---|---|---|
| Style | Vertical | Plastic Type | Thermoplastic |
| Automatic | Yes | Injection Weight | 58g&67g |
| Injection Rate | 67~76.7cm3/sec | Clamping Force | 30T |
| Opening Stroke | 180mm | Power(W) | 5.5KW |
| Certification | CE ISO | Screw Diameter | 28mm & 30mm |
| Machine Dimension | 1.25*1*2.1m | Screw Speed | 0-200rpm |
| Machine Weight | 750KG | Motor Power | 3.75/5HP |
| Warranty | 1 Year | ||
| Highlight | vertical plastic injection moulding machine,vertical injection moulding machine |
||
Product Description

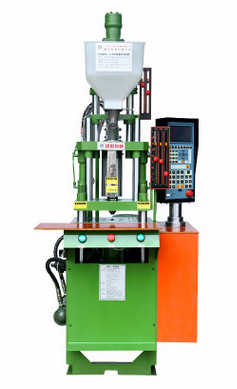

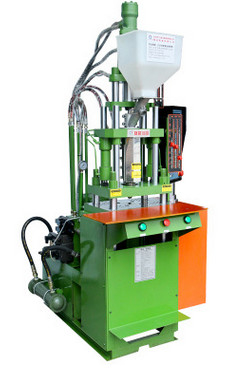

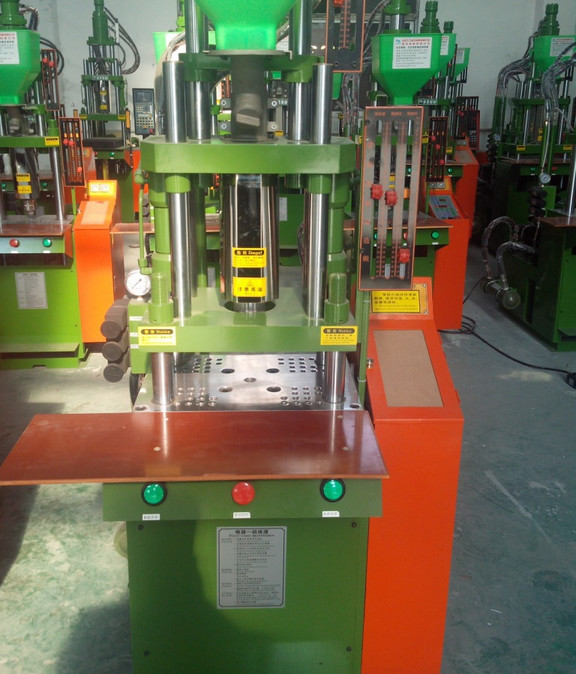

Hydraulic Abs Plastic Vertical Injection Molding Machine Low Pressure Automatic
Features:
1.Straight screw ejected assembly.
2.Two(three) phase temperature ,ejected speed,backing pressure and screw speed is suitable for various plastic to confectioned.

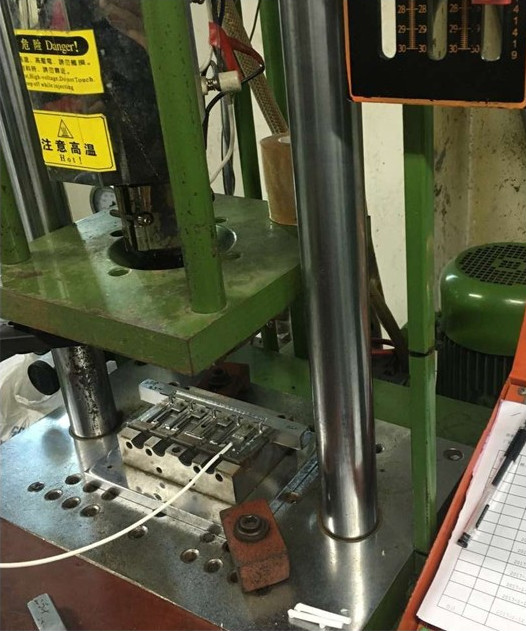

3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die .
5.Adopting LCD display.
| Specifications: | ||||
| MODEL | AM701-3.0T | |||
| Screw Diameter | Mm | 28 | 30 | |
| Injection Pressure | kg/cm² | 1019 | 896 | |
| Theoretical Shot Volume | cm³ | 64.6 | 74 | |
| Max.Shot Weight(ps) | g | 58 | 67 | |
| Safe Shot Weight(ps) | OZ | 2.0 | 2.4 | |
| Max.Shot Weight(ps) | cm³/sec | 67 | 76.7 | |
| Injection Rate | mm | 105 | ||
| Screw Speed Max. | rpm | 0-200 | ||
| Nozzle Comtact Force | Tons | 30 | ||
| Nozzle Retraction Stroke | mm | |||
| Number of Temperature Control | 2 | |||
| Clamping Force | Tons | 30 | ||
| Platen Size | mm | 480*310 | ||
| Distance between tie bere | mm | 295 | ||
| Min.Mold Height | mm | 100/30 | ||
| Opening Stroke | mm | 180 | ||
| Max.Open Daylight | mm | 280/210 | ||
| Ejetor Force | Tons | 1.3 | ||
| Ejetor Stoke | mm | 35 | ||
| Max.Hydaulic Pressure | kg/cm² | 140 | ||
| Pump Output | l/min | 29.5 | ||
| Oil Resservoir Capacity | l | 100 | ||
| Cooling Waer Consumption | l/hr | 400-600 | ||
| Pump Motor Power | KW/HP | 3.75/5HP | ||
| Berrel Heating Power | KW | 1.8 | ||
| Total Electricity | KW | 5.5 | ||
| Packing Weight | Kg | 850kg | ||
| Packing size(LxWxH) | m | 1.5*1.2*2.25 | ||
Application:Plastic injection molding machine widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug.
