Automatic Leicca Usb Data Cable Cutting Stripper Machine Diameter Φ16mm
| Certification | CE |
|---|---|
| Model Number | AM-603-25 |
| Minimum Order Quantity | 1set |
| Packaging Details | exported carton |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 300sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine | Automatic Leicca Usb Data Cable Cutting Stripper Machine | Usage | Wire Cutting And Stripping |
|---|---|---|---|
| Available Wire Range | AWG3#~AWG30#(0.1-25MM2) | Cutting Tolerance | ±(0.002×L) (L = Cutting Length) |
| Stripper Length | Wire Head 0 - 50mm, Wire Tail 0-50mm | Max Middle Stripping | 13sections |
| Conduit Diameter | Φ16mm | Cutting Length | 1 - 100000mm |
| Suitable Wire Sheath Material | Suitable For Kinds Of Wires, Such As PVC, Teflon, Glass Wires Etc | ||
| Highlight | wire stripper machine,cable stripping machine |
||
Product Description

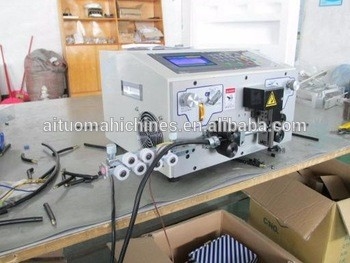

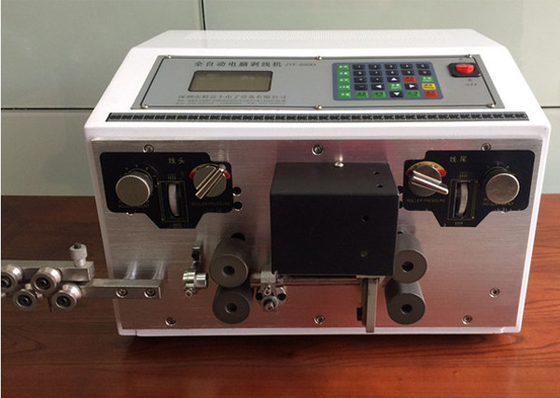

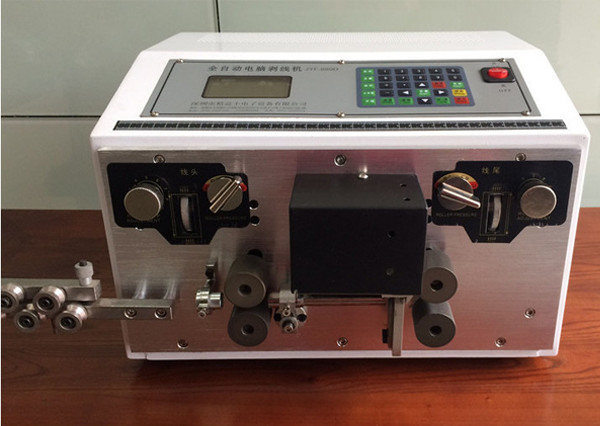

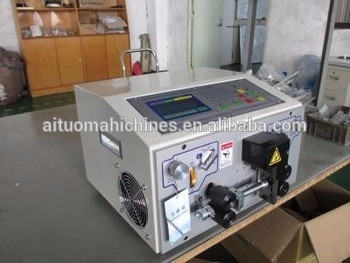

leicca usb data cable cutting stripper machine
Product Description
1.High speed automatic electric wire cutting stripping machine can cut,strip,middle strip and full strip automaticlly at one step.
2.Available wire range 0.1~25mm2(AWG3#~AWG30#),stripping length,cutting length can be adajusted as your need.
3.Special for cutting stripping thick wires/cables,big wires, etc. Mainly used in wire processing factory,Transformer producer,socket producer,Home appliance.etc.
| Model | AM603-25 leicca usb data cable cutting stripper machine |
| Wire size | AWG3#~AWG30# /0.1 - 25mm2 |
| Conduit Diameter | Φ16mm |
| Cutting Length | 1 - 100000mm |
| Stripping Length | Head 0 - 50mm, Tail 0 - 50mm |
| Memory Function | Store Max. 99 group programs |
| Max. Middle Stripping Section | 11 |
| Cutting Tolerance | ±(0.002×L) (L = Cutting Length) |
| Speed | 2000 - 3000pcs/hour |
| Display | LCD display with English and Chinese menu |
| Drive Mode | Four wheels drive |
| Blade Material | HSS |
| Power Supply | 220V60Hz 110V/50Hz |
| Power Rating | 450W |
| Size | 420x390x280mm |
| Appropriate Wire | Suitable for kinds of wires, such as PVC, Teflon, glass wires etc |
| Weight | 30kg |
Packaging & Shipping
1.Shipping by Express, Sea or Air depend on your request.
2.All machines will be testing and packed well before shipping.
3.Packge box is standard exported wooden case or paper carton.
Certifications
Contact information
Winter Tian
ShenZhen AiTuo Automation Device Co.,Ltd
Mobile/Whatsapp:+86 18926493860
Skype ID:winter1766_1
QQ:2861618700
Wechat;18926493860
Website:www.automachines.cn
Company Information
Shenzhen Aituo Automation Technology Co., Ltd. is one of famous company of China specialized in the production of automatic cable bundling machine and processing equipment for wire terminal.We have a complete and scientific quality management system. The full-automatic bundling machine we produced complete cable winding and cable bundling at one step, with high speed, high quality.
Our processing equipment of wire teminal includes: automatic terminal machine, Ultra-quiet terminal machine, full- automatic computer wire stripping (twisted) machine, gas stripping machine, Copper strap machine, and other special equipment . We have professional technicians and a first-class after-sale service team, Can at any time provide comprehensive technical support and service to the customers.
We always base on the principle of "quality first, integrity and innovation, to meet the demands of customers" ,Our company and products are widely accepted by local and oversea customers. Our products have been exported to India, Japan, Korea, Vietnam, Singapore, Australia, Canada, America, Mexico, Brazil, Argentina, England, France, Germany, Netherlands, Italy, Turkey, Poland & other regions with good quality and competitive prices.
