Vertical Powered Wire Stripping Machine Pneumatic Heating 5KGS - 7KGS Air Pressure
| Certification | CE |
|---|---|
| Model Number | AM403-3FN |
| Minimum Order Quantity | 1 Set |
| Price | negotiation |
| Packaging Details | Wooden case |
| Delivery Time | 7-10 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100sets / per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AM403-3FN | Voltage | 220V 50Hz |
|---|---|---|---|
| Air Pressure | 5-7KGS | Stripping/twisting Length | 3-20mm |
| Weight | 14KG | Dimensions | 320*230*300mm |
| Highlight | wire stripper machine,wire stripping equipment |
||
Product Description

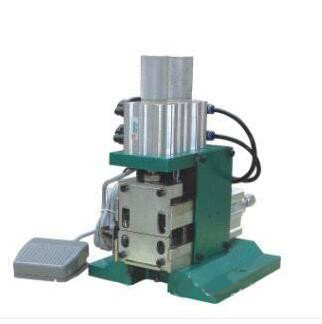

Vertical Powered Wire Stripping Machine Pneumatic Heating 5KGS - 7KGS Air Pressure
Features:
1. The machine is mainly suitable for small to medium thick computer peripheral cable, telephone cable, side cable, audio cables, microphone cables, etc. Such model will strip and twist the tails of the cables.
2. Compact design makes the structure of machine tightly, compact,and easy-operating.
3. Multiple synchronous strip and twist function for higher work efficiency, superior quality.
4. Compared with other similar product, this machine has absolutely cost performance, it greatly saves the labor cost, cheap but excellent.
Technical Parameters
| Model | AM403-3FN | AM404-4FN |
| Voltage | 220V 50Hz | 220V 50Hz |
| Power | 90w | 90w |
| Suitable wire size | 0.1-0.75mm2(AWG18#-32#) | 0.1-0.75mm2(AWG18#-32#) |
| Ability to strip/twist | 1-10pcs/times | 1-10pcs/times |
| Stripping/twisting length | 3-20mm | 3-30mm |
| Stripping/twisting speed | 120-130times/min | 120-130times/min |
| Air pressure | 5-7KG | 5-7KG |
| Weight | 14KG | 18KG |
| Dimension | 320*230*300mm | 320*300*400mm |
