Digital Lcd Display Pcb Soldering Machine , Automatic Soldering Robot

  • Digital Lcd Display Pcb Soldering Machine , Automatic Soldering Robot
Model Number AM804
Minimum Order Quantity 1 set
Packaging Details Standard Export box
Delivery Time 3~7 working days
Payment Terms T/T, Western Union, MoneyGram, Paypal

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine 2015 New Digital Display Automatic Soldering Robot/automatic Soldering Machine Process Range 200X*200Y*50Zmm*±360°R
Max Loading 8kg Repeat 500*500Y *500Zmm/sec *600°/sec
Precision ±0.01mm(X/Y/Z)/ ±0.02°(R) Temp Ranges Room Temperature-500℃
Tin Thread Size Φ0.3～1.6mm Memory Function 9999 Program
Data Saving Mode Internal Storage Display LCD
Motor System Stepper Motor Operating Mode Manual/Automatic
Interpolation Function Two Dimensional Line,Three Dimensional Line,Three Dimensional Arc Air Pressure 4～5kg Cm2
Voltage AC220V Size 450*450*735mm
Weight 30k Payment T/T, Western Union, MoneyGram, Paypal
Packing Standard Export Box
Highlight

led soldering machine

,

solder paste screen printing machine
Leave a Message
Product Description



Digital Lcd Display Pcb Soldering Machine , Automatic Soldering Robot



Model AM-804 AM-805 AM-806
Process range

200X╳200

Y╳50Zmm╳±360°R

 300X╳300Y╳80Zmm╳±360°R 400X╳400Y╳80Zmm╳±360°R
Max loading 8kg

Repeat

precision

 500X╳500Y ╳500Zmm/sec ╳600°/sec
±0.01mm(X/Y/Z)/ ±0.02°(R)
Temp ranges Room temperature-500℃
Tin Thread Size Φ0.3～1.6mm
Memory function 9999 program
Data saving mode internal storage
Display LCD
Motor System stepper motor
Operating mode Manual/Automatic
Interpolation Function

Two dimensional line,Three

dimensional line,Three dimensional arc
Air pressure 4～5kg cm2
Voltage AC220V
Size

450╳450╳

735mm

550╳550╳

765mm

650╳

650╳765mm
Weight 30k 40kg 50kg

Application:
This machine is available for the automotive electronics, digital, electronics, LCD, circuit boards and some other production industries, also for the High quality welding of connectors, RJ/network Transformer, platoon line, FPCB welding, COF package drawing welding, computer motherboards, cable, horn and motor.

Features:
1. Perfect soldering process Settings, with pull and spot welding function, each instruction has independent soldering parameters, such as preheating tin length, preheating welding time, back to the tin, lift height,and so on.
2. Support to import the PLT format file, realizes to directly import the file of path data, convenient and accurate.
3. This machine can offline or independent operation, welding parameters stored in SD card, it convenient for the parameter copy and save between devices.
4. With 2GB storage space, can store thousands of soldering process, each program for 8000 welding Tin instruction
5. Two types of send tin device: break tin function/without breaking tin function.
6. Display with 320 * 240 high resolution color screen, English operation interface, easy to operate.

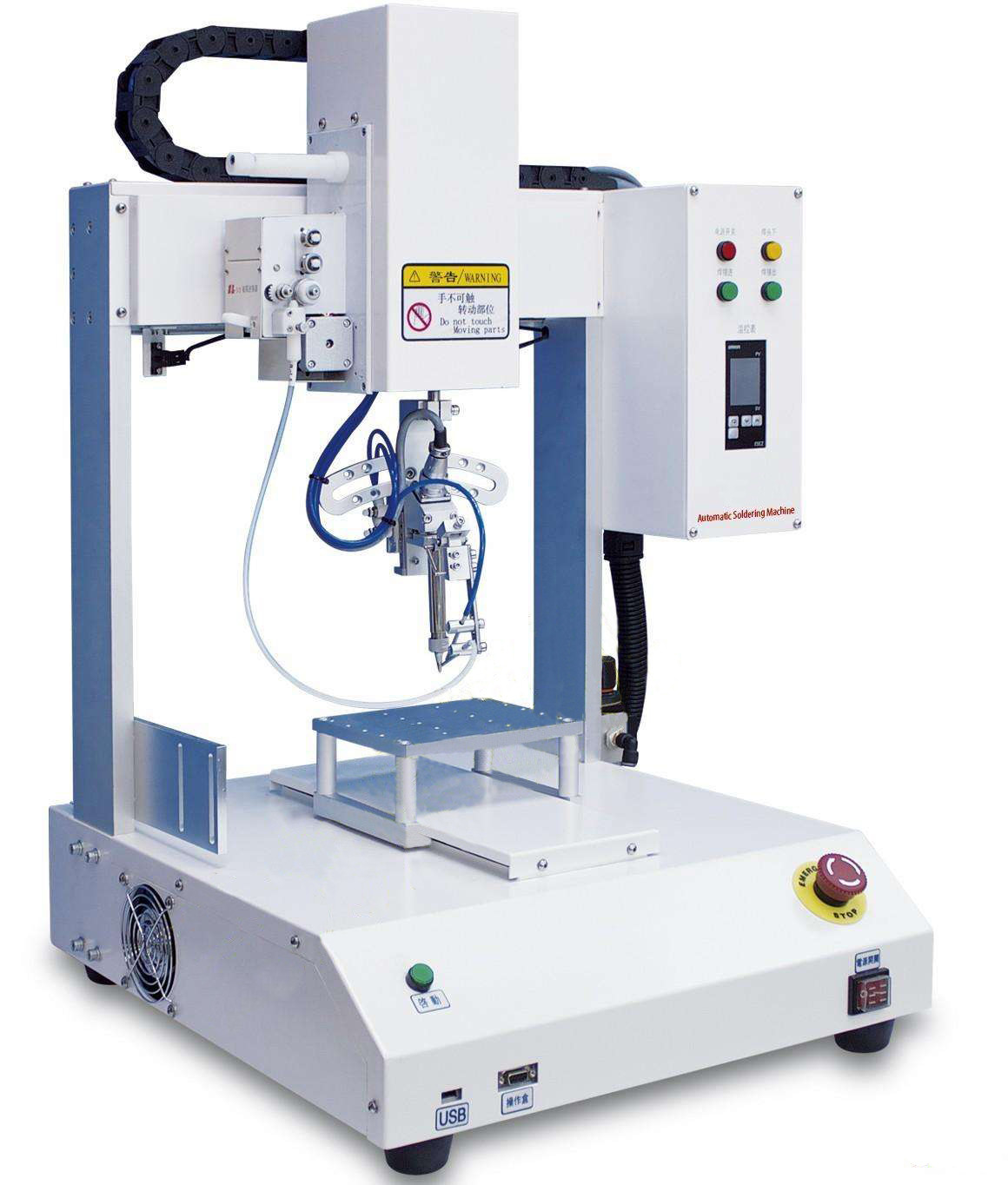

Digital Lcd Display Pcb Soldering Machine , Automatic Soldering Robot 0

Digital Lcd Display Pcb Soldering Machine , Automatic Soldering Robot 1

Digital Lcd Display Pcb Soldering Machine , Automatic Soldering Robot 2

Digital Lcd Display Pcb Soldering Machine , Automatic Soldering Robot 3

Digital Lcd Display Pcb Soldering Machine , Automatic Soldering Robot 4

Digital Lcd Display Pcb Soldering Machine , Automatic Soldering Robot 5
