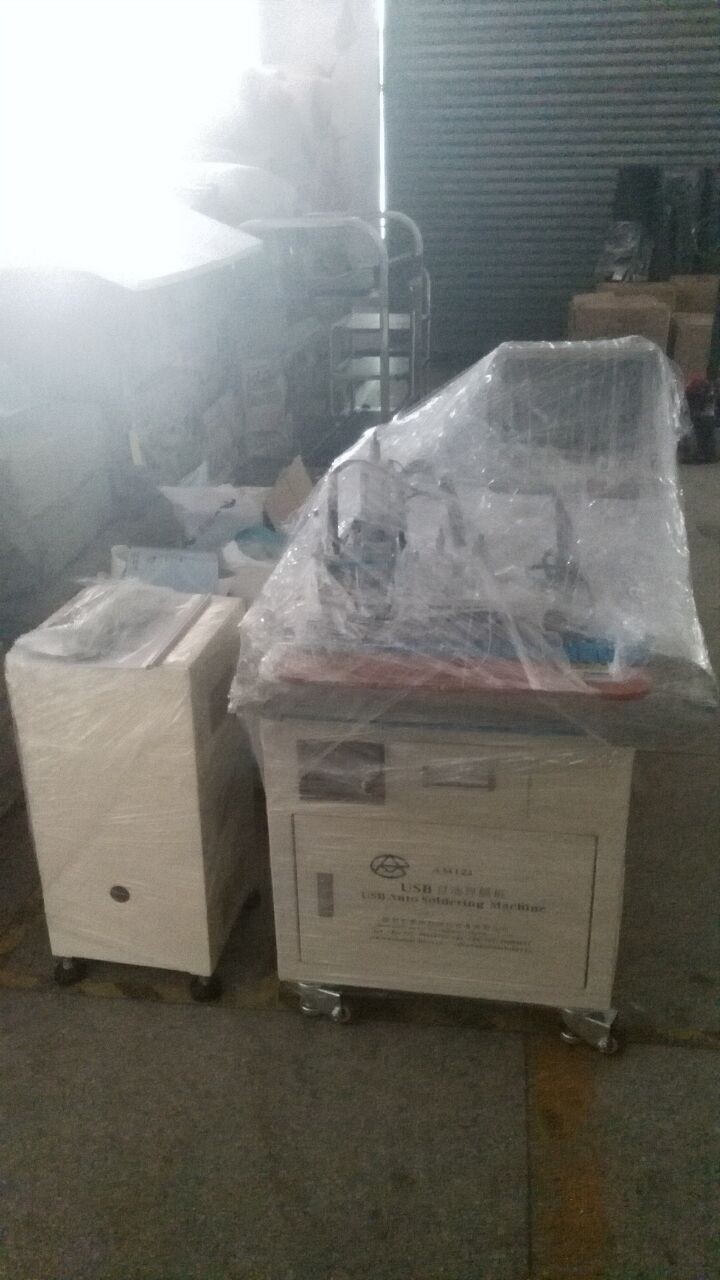

AC 230V Switch PCB Soldering Machine Constant Temperature 800×600×1100 MM
| Certification | CE |
|---|---|
| Model Number | AM121 |
| Minimum Order Quantity | 1SET |
| Price | Negotiation |
| Packaging Details | Exported Wood Package |
| Delivery Time | 5-10 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 sets per moneth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | AC230V | Air Source Pressure | 0.5-0.8MPA |
|---|---|---|---|
| Production/hour | 1400PCS | Applicable Wire | 2-5 Cores Wire |
| Dimensions | 800*600*1100MM(L*W*H) | Soldering Angle | 90 Degree |
| Highlight | wave soldering machine,led soldering machine |
||
Product Description
AC 230V Switch PCB Soldering Machine Constant Temperature 800×600×1100 MM
Features:
1. This automatic wire soldering machine with good compatibility to widely applied for wire with various lengths and different soldering requirement
2. Alerting system that will warn the operator if lack of materials or breakdown of machinery
3. PLC and touch screen panel with HMI indicated both in EN/CN available, easy to operate and control the whole assembly process
4. This automatic wire soldering machine developed to provide a total one- stop solution from material loading to soldering as well as unloading operation, by this way, the manufactures could increase productivity, improve product quality and enable a high level of automation to save more manpower
Application Range
1) the soldering between USB A Male connector and wire.
2) the soldering between USB B Male connector and wire.
3) the soldering between micro USB connector and wire.
4) the soldering between mini connector and wire.
5) the soldering between iphone connector and wire.
6) the soldering between PCB/Switch and wire.
| Voltage | AC220V/110V |
| Power | 600W |
| Air Pressure | 0.5-0.8MPA |
| Productivity | 800-1200pcs/h |
| Dimension | 800*600*1100MM(L*W*H) |
| Mounting | Moving on ground |
| Temp control model | Constant temperature |
| Soldering material | Soldering wire |
| Soldering angle | 90 degree |
