0.5MPA - 1.0MPA Induction Brazing Equipment Plc Control Automatic Counting
| Certification | CE |
|---|---|
| Model Number | AM151 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in wooden box |
| Delivery Time | 30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 2 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Pressure | 0.5-1.0MPA | Voltage | AC220V/50Hz |
|---|---|---|---|
| Maximum Power Of Main Engine | 3.4KW | Power Of Main Engine | 1.5KW |
| Influent Temperature | Less Than 40℃ | Speed | 8 Seconds/piece |
| Highlight | induction brazing machine,auto brazing machine |
||
Product Description

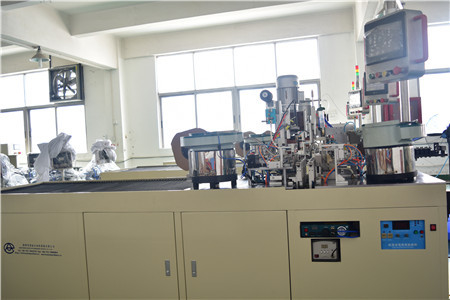

0.5MPA - 1.0MPA Induction Brazing Equipment Plc Control Automatic Counting
Introduction
We provide high quality induction brazing machine to welding stainless steel plate, aluminum sheet and heating element into one whole body at one time for electric heating pan, pot, kettle as per the requirements of the clients with multi heating station.
High power electron tube high frequency power supply is used as the heating power supply, and the hydraulic system is used as drive force. The running is stable, control is precise, operation is simple and product up-to-standard rate is high. The PLC control is adopted to realize functions such as automatic counting, automatic timing, heat quantity control and technical process programming, making it the best equipment for the production of the new generation of electro-heating stainless steel kitchen utensils
Usage: Make all kinds of thermocouples-- fireplace, oven ,gas cooker,gas water heater
Machine Type: Full-automatic
Output: 300-600 pc/hour
1. Automatically feed tube,copper wire,brass part head, gasket ,nut .
2. Automatically welding
3. Automatically detecting the final product.
Basic Parameters
| Air Pressure | 0.5-1.0MPA |
| Voltage | AC220V/50Hz |
| maximum power of main engine | 3.4KW |
| Power of main engine | 1.5KW |
| maximum power of Brazing Machine | 20KW |
| Cooling hydraulic pressure | 0.2MPa |
| Influent temperature | less than 40℃ |
| Speed | 8 seconds/piece |
| Dimension | 2100mm*900mm*2100mm |
| Floor space | 5020mm*2100mm |
