AM407 4 core pvc cable stripper machine semi-automatic
| Certification | CE |
|---|---|
| Model Number | AM407 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | wooden package |
| Supply Ability | 50 sets one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Stripping | Blade | Stainless Steel |
|---|---|---|---|
| Air Pressure | 0.42-0.8mpa |
Product Description

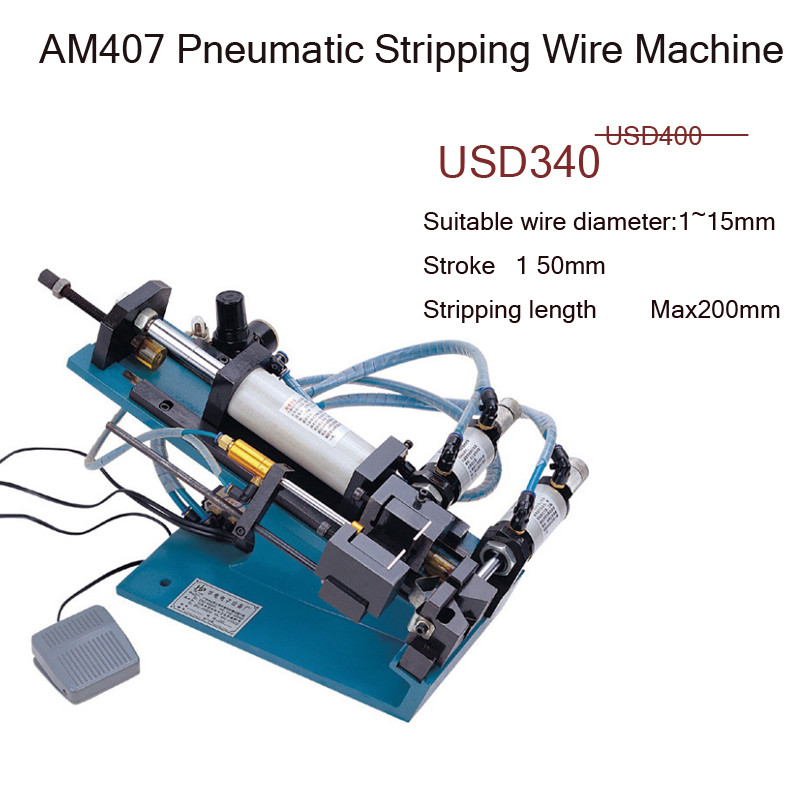

AM407 4 core pvc cable stripper machine semi-automatic
FEATURE:
1.Bevel design,according to somatology
2.Dual-driving cylinder,no spring breakage
3.Self-feeding oil and supply.Timely oil supply to cylinder can decrease abrasion of interior cylinder and lengthen life
4.Special sliding holder,balance stroke and high peeling precision.
5.Electric control,easy operation.
6.Adjustable structure,and wire thickness.
7.Suitable for short cable with small diameter,such as AC/DC power wire,computer cable,electronic cable and multi-core cable
PARAMETER:
| Model | AM405 | AM406 | AM407 |
| Stroke | 50mm | 100MM | 150MM |
| Peeling length | Max7mm | Max15mm | Max20mm |
| Air pressure | 0.3-0.7mpa | 0.35-0.75mpa | 0.42-0.8mpa |
| Voltage | 220V/50Hz | 220V/50HZ | 220V/50HZ |
| Power | 31-37Kg | 49-115KG | 84-196KG |
| Cylinder diameter | φ40mm | φ50mm | φ63mm |
| N.W | 20KG | 25KG | 45KG |
| SIZE | 400×300×270mm | 480*330*280mm | 600*420*360mm |
