Automatic Wire Processing Machine With Cutting Stripping / Tinning 50HZ / 60HZ
| Certification | ISO |
|---|---|
| Model Number | AM106 |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard export carton |
| Delivery Time | 7~10 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 150sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Cutting Wires,stripping Wires And Tinning | Applicable Wires | All Kinds Of Electric Wires Such As Teflon Wire Or Enameled Wire |
|---|---|---|---|
| Available Wire Gauge | AWG34#~AGW20#) | Productivity | 20000pcs/h |
| Cutting Length | 7.5-1149mm | Stripping Length | 0.1~9.9mm |
| Twisting Length | 3.0~9.9mm | Tin Processing Length | 0.1~9.9mm |
| Air Presure | 5kgf | Weight | 280kg |
| Size | 600*800*1100mm | ||
| Highlight | wire processing equipment,cable processing equipment |
||
Product Description

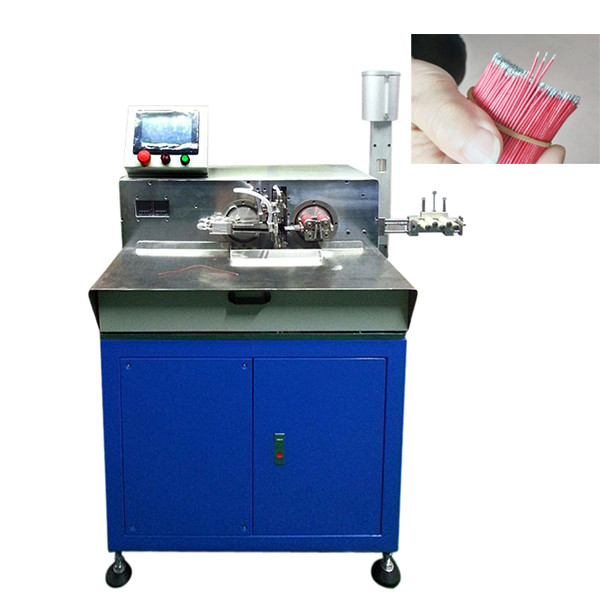

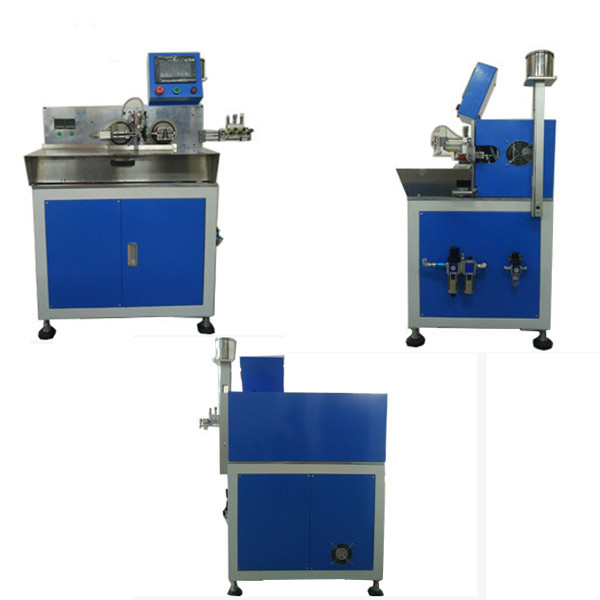

Automatic Wire Processing Machine with cutting stripping and tinning function
this machine can do wire cutting(one side/both sides) ,wire stripping(one side/both sides),wire twisting and wire tinning(one side/both sides),one time can process 10 pcs wires with high speed up to 20000~25600pcs/H.
Fully Automatic Wire Cutting Stripping Tinning Machine Chinese SupplierSpecfifications;
| Applicable wire size | AWG34#~AGW16#) | Cutting length | 6mm-1149mm | Stripping length | 0.1~9.9mm |
| Twisting length | 3.0~9.9mm | Tinning length | 0.1~9.9mm | Air pressure |
5kgf( clean air) |
|
Power
|
AC220V 50/60HZ
|
size
|
600W×800L×1100 (mm)
|
Weight
|
280KG |
Automatic Wire Processing Machine with cutting stripping and tinning function Features:
1.Factory direct sale with high quality and competitive price.
2.Design tight and beautiful,spare parts are imported high stable.
3.Easy operation,the length of cable,cutting length,speed,tinning time are setting from touch screen.
4.Cutting,stripping,twisting and tinning 10pcs wires at one time,the Capacity up to 25600pcs each hour.
5.The cable length controlled by high precious motor imported from SANYO Japan.
6. This machine moistens the tin angle close to 90 degrees, the wire diameter is stained with tin uniform, precise dipping depths.
7.Tin surface debris and clean design with an automatic erase function enables soldering at no tin crumbs.
