High Resolution Terminal Crimping Pull Force Tester 500N With Nickel Cyanide Battery

  • High Resolution Terminal Crimping Pull Force Tester 500N With Nickel Cyanide Battery
Certification ISO
Model Number AM -TC
Minimum Order Quantity 1
Price negotiation
Packaging Details Strong export wooden box package
Supply Ability 50SETS Per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Force Range 500N (1000N Tester Is Optional) Resolution 0.01 N
Accuracy ± 0.5% Power Supply Nickel Cyanide Battery (220V AC Charging 4 To 6 Hours)
MOQ 1 Warranty 1 Year
Highlight

wire processing equipment

,

cable processing equipment
Leave a Message
Product Description

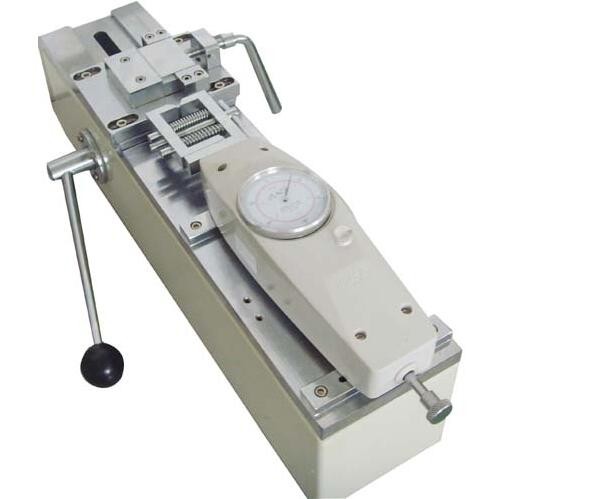

High Resolution Terminal Crimping Pull Force Tester 500N With Nickel Cyanide Battery



Features



The terminal crimping force tester is especially designed for measuring pull forces of crimp connections, weld connections and many other possibilities. Simple LCD display for easy programming and read out, it provides standard interface for curve analysis and downloading test data.



High accuracy & high resolution
Having 5 kinds of test modes, 3 kinds of display usages for selection;
Units : N, Kg and Ibf for your selection, which can make conversion each;
Function of reset the acceleration of gravity;
Peak hold function;
Peak automatic clearance function;
Set the tolerance limit (Max/Min);
Super memory function - deposit 888 test values.
Automatic power off function ;
With 2 sets of different installation size;
LCD screen turn direction function ;
Inductive background light;
RS-232 output;
a. match a free software for analysis ( without graph).
b. match a synchronous test software ( software is optional ), it can connect to PC to get synchronous graph, and also can reserve ,print, analysis, and so on.



Specifications



Force range 500N (1000N tester is optional)
Resolution 0.01 N
Accuracy ± 0.5%
Power supply nickel cyanide battery (220V AC charging 4 to 6 hours)
Ambient temperature 0 to 60°C
Ambient humidity <80%
Allowable overload 150%
Dimensions 115mm × 180mm × 30mm





Shenzhen Aituo Automation Device Co., Ltd is a production-oriented high-tech company, which in the field of automation machine and equipment with strong technological, has a strong research&design team. We have advanced production equipment, professional technical personnel and experienced domestic and foreign sales, and the ISO quality management system.Our productions mainly are wire terminal processing equipment, which includes: Automatic USB soldering machine, automatic wire strip&tin machine, full/semi automatic cable bundling machine, automatic wire stripping cutting machine, automatic teminal crimping machine, gas wire stripping machine, copper strap machine and so on. Especially, automatic USB soldering machine and automatic wire strip&tin machine are our latest research and development new equipment, which greatly improve production efficiency, and greatly save production cost.
