Multi Cores Flat Power Cable Wire Stripping Machine With Four Wheels Drive
| Certification | CE |
|---|---|
| Model Number | AM-607-1 |
| Minimum Order Quantity | 1set |
| Packaging Details | exported carton |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 300sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine | Multi-cores Flat Power Cable Wire Cutting And Stripping Machine | Usage | Wire Cutting And Stripping |
|---|---|---|---|
| Available Wire Range | AWG9#~AWG32#(0.1-4.5MM) | Cutting Tolerance | ±(0.002×L) (L = Cutting Length) |
| Stripper Length | Wire Head 0 - 50mm, Wire Tail 0-50mm | Max Middle Stripping | 13sections |
| Conduit Diameter | Φ10mm | Cutting Length | 1 - 60000mm |
| Suitable Wire Sheath Material | Suitable For Kinds Of Wires, Such As PVC, Teflon, Glass Wires Etc | ||
| Highlight | wire stripper machine,cable stripping machine |
||
Product Description

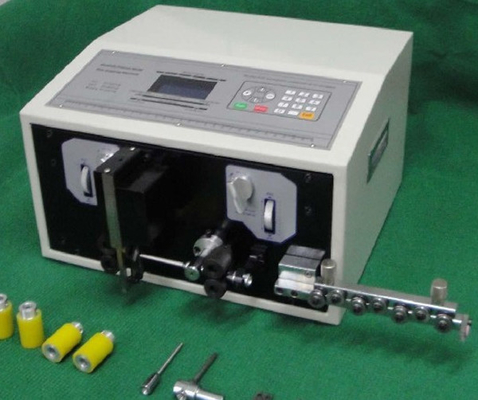

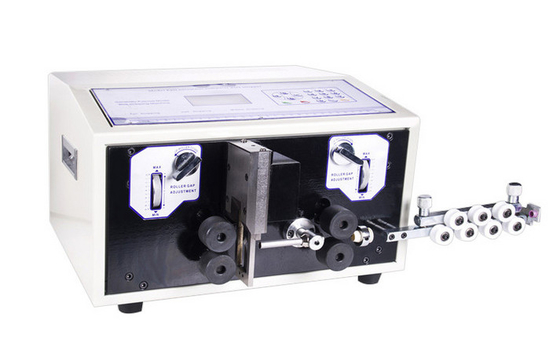

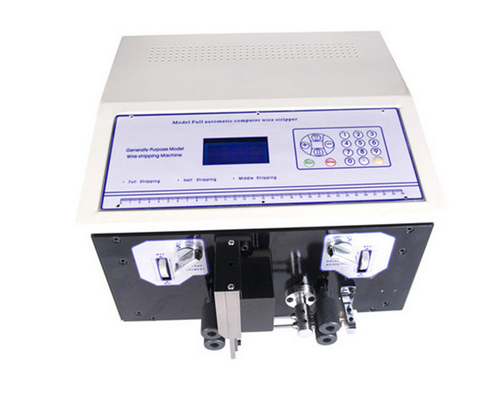

Multi-cores flat power cable cutting and stripping machine
This model is four wheels drive automatic wire stripping and cutting machine, suitable for wire gauge 0.1 - 4.5mm2wires,designed for cutting stripping multi-cores cable,such as power cable,usb cable,telephone cable and communication cables etc.you only need to set the,cutting length,stripping length and total amount etc. then it will cutting and stripping wires autoamtically.
| Model | AM607-1 Multi-cores flat power cable cutting and stripping machine |
| Wire size | AWG9#~AWG32# (0.1-4.5MM2) |
| Conduit Diameter | Φ10mm |
| Cutting Length | 1 - 60000mm |
| Stripping Length | Head 0-50mm, Tail 0-50mm |
| Memory Function | Store Max. 99 group programs |
| Max. Middle Stripping Section | 13sections |
| Cutting Tolerance | ±(0.002×L) (L = Cutting Length) |
| Speed | 3000 - 6000pcs/hour |
| Display | LCD display with English and Chinese menu |
| Drive Mode | Four wheels drive |
| Blade Material | Hard tungsten steel or imported white steel optional |
| Power Supply | 220V/50Hz 110V/60Hz |
| Power Rating | 350W |
| Size | 420x390x280mm |
| suitable wire sheath material | Suitable for kinds of wires, such as PVC, Teflon, glass wires etc |
| Certificate | CE |
| Weight | 32kg |
Multi-cores flat power cable cutting and stripping machine Features;
1.The wire cutting and stripping machine is main widely used in the electronics industry, electric power, injection molding equipment, electric tools, automobile and motorbike industry, electrical machinery, electrical appliances, air conditioners, washing machines, electronic instruments, toys, lamps, transformers, connectors and other types of products, wiring harness processing.
2.Suitable cutting wire material:PVC/teflon/silica gel line /Glass fiber etc,Special for round cable,jacket cable.
3.This product use the LCD screen people dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher character.
4.Wire length can set arbitrary, according to the customer request free to change, different degree of finish off wire, also have on row line, sheath line, power lines and bushing cutting functions.
