Professional Desktop Screw Fastening Machine / Precision Screw Driver
| Model Number | AM801 |
|---|---|
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard Export Carton |
| Delivery Time | 3~5 working days after payment |
| Payment Terms | Western Union, MoneyGram, T/T |
| Supply Ability | 300 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Screw Fastening Machine | Function | Precision Screwdriver |
|---|---|---|---|
| Frequency | 50/60HZ | Rated Input Power | 30W |
| Rated Voltage | 220v/110v | No-Load Speed | 100rpm |
| Max. Torque | 0.3n.m | Suitable For | M2-M6 Screw |
| Suitable Screw Head Type | All Type | Screwdriver Operation Method | Electricial / Pneumatic Screwdriver |
| Packing | Standard Export Carton | Payment | TT/Western Union/Paypal |
| Highlight | wire processing equipment,cable processing equipment |
||
Product Description

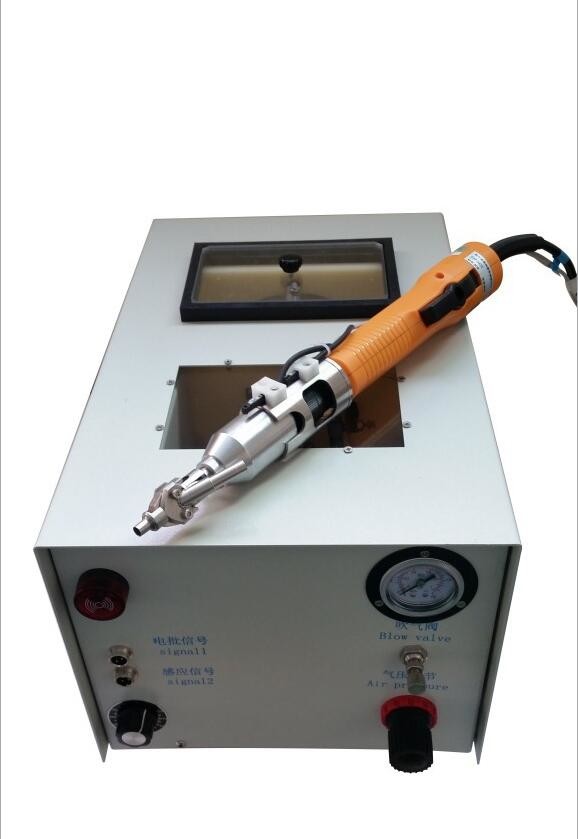

Professional Desktop Screw Fastening Machine / Precision Screw Driver
It is suitable for all kinds of screw. Cheap and save labor
Application:
1) Scope of applicative screws: M2- M6
2) Scope of applicative screw heads: for any universal type
3) Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.
4) Screw Materials: iron, copper, stainless steel, etc.
5) Materials of products to be screwed: plastic, iron, aluminum, etc.
6) Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.
Application Industry :
Handheld Screw fasten machine is widely used in various industries, such as mobile phones, hard drives, keyboards, toys, LCD / LED modules, communications equipment, electrical appliances, auto parts and other electronic processing assembly.
Product structure :
Screw locking machine consists of 3 main parts: 1.Screw feeding system. 2. Screw sorting system. 3. Screw locking system.
These 3 systems are controlled by the machine's program.
Products working principle :
Hand-held automatic locking screw machine feeds screws in a turbine way and order screws on a vibration guide rail, and transport screws to Screw Sorting System through magnetic resonance, then sort one screw per time and send it to screwdriver nozzle, finally electric or pneumatic screwdriver will lock the screw into products.
Specifications:
| Voltage | 220V, 50HZ |
| Power | 30W |
| Capacity of Screw Pocket | M2 X 6 5000PCS |
| Screw-feeding Speed | 0.5 sec/ piece |
| Efficiency |
50-70 pcs/min depends on screw length |
| Conveying Distance | 1-4M |
| Noise | below 65db |
| Size(L*W*H) | 370*250*190 mm |
| Weight | 20kg |
