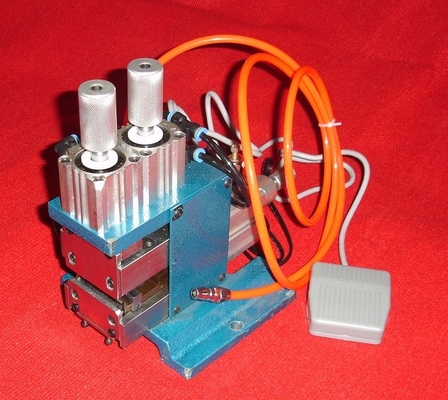

Vertical Multi Core Wire Stripping And Twisting Machine 120 Times - 130 Times / Min

  • Vertical Multi Core Wire Stripping And Twisting Machine 120 Times - 130 Times / Min
Certification CE
Model Number AM403-3FN
Minimum Order Quantity 1 Set
Price negotiation
Packaging Details Wooden case
Delivery Time 7-10 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100sets / per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model AM403-3FN Voltage 220V 50Hz
Air Pressure 4-7KGS Stripping/twisting Length 2-20mm
Weight 15KG Dimensions 320*230*300mm
Highlight

wire stripper machine

,

wire stripping equipment
Leave a Message
Product Description

Vertical Multi Core Wire Stripping And Twisting Machine 120 Times - 130 Times / Min​





Features:

1. This machine is dedicated to computer multicore cable and all kinds of multicore cables.
2. Wire cutting and stripping can be completed at one time, wire stripping can use single pole and double pole.
3. The operation is simple, save labor and quick.
4. Copper wire stripping, platinum wire stripping and silk thread stripping have no neat phenomenon of nylonwire.





Technical Parameters

Model AM403-3FN AM404-4FN
Voltage 220V 50Hz 220V 50Hz
Power 90w 90w
Suitable wire size 0.1-0.75mm2(AWG18#-32#) 0.1-0.75mm2(AWG18#-32#)
Ability to strip/twist 1-10pcs/times 1-10pcs/times
Stripping/twisting length 3-20mm 3-30mm
Stripping/twisting speed 120-130times/min 120-130times/min
Air pressure 5-7KG 5-7KG
Weight 14KG 18KG
Dimension 320*230*300mm 320*300*400mm



   Vertical Multi Core Wire Stripping And Twisting Machine 120 Times - 130 Times / Min 0
