Electronic USB Plug Wire Bending Fatigue Testing Machine 6 Pcs Per Each
| Certification | CE |
|---|---|
| Model Number | AM-TB |
| Minimum Order Quantity | 1set |
| Price | negotiation |
| Packaging Details | Strong export wooden box package |
| Payment Terms | L/C, T/T |
| Supply Ability | 50SETS Per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | Electronic | Usage | Bending Testing Machine |
|---|---|---|---|
| Jig | 6 Sets | Bending Angle | 30°,45°,60°,90°,120°,150°,180°( |
| Bending Speed | 10~60c.p.m (Adjustable) | Bend Times | Adjustable |
| Highlight | cable processing equipment,cable Processing Machine |
||
Product Description

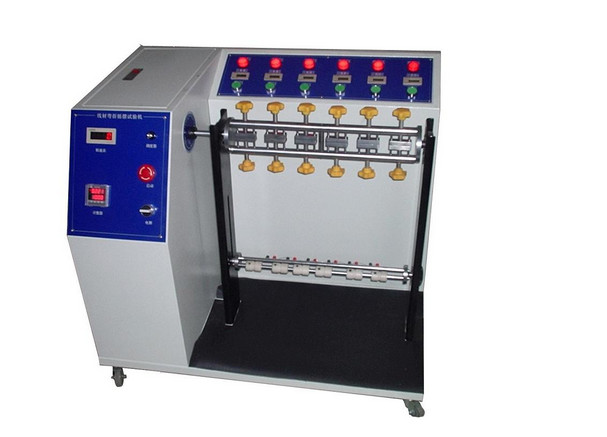

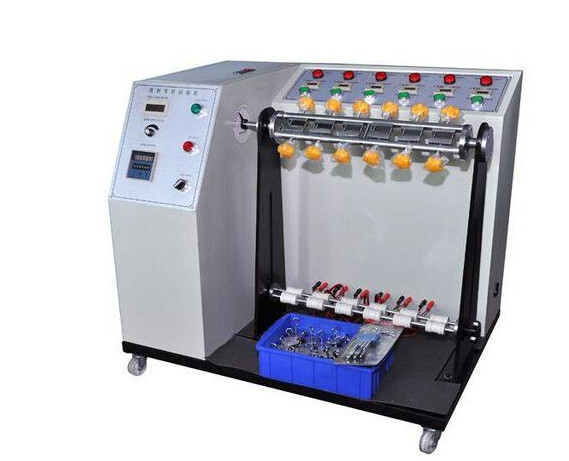

Electronic USB Plug Wire Bending Fatigue Testing Machine 6 Pcs Per Each
Specification:
| Product Name | USB Plug Wire Bending Fatigue Test Machine |
| Jig | 6 sets |
| Bending angle | 30°,45°,60°,90°,120°,150°,180°(Adjustable) |
| Bending speed | 10~60c.p.m (Adjustable) |
| Counter | 6pcs counter individually |
| Load | 50g,100g,200g,300g,500g (6 pcs per each) |
| Bend times | 0-999999 times |
| Weight | 100kg |
| Dimension (W*D*H) | 850*600*750mm |
| Power supply | AC220V 3A or specified by user |
Features
1, USB Plug Wire Bending Fatigue Test Machine apply for bending endurance test for cable connected
with plug.
2, Fix the sample on jig and put the weight at the cable, then to swing the jig right and leftwith the
setting angle. after rotating to required cycles then stop to check the cable; or check the rotation cycles after cable broken while the cable is tested by connecting to the electricity. While the cable is broken and
disconnected from electricity, the tester will automatically count and then stop.
3, Corresponding standard: GB2099,UL,VDE,IEC,JIS.
