Cable Automatic Transformer Coil Winding Machine Circle Type With Double Bundle
| Certification | CE |
|---|---|
| Model Number | AM106 |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | export standard wooden package |
| Delivery Time | 7-10 work days |
| Payment Terms | D/A, D/P, Western Union, MoneyGram, T/T, L/C |
| Supply Ability | 50 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 120kg | Size | 750*600*1380mm |
|---|---|---|---|
| Voltage | 210-240v/5A | Speed | Adjusted |
| CE | Yes | MOQ | 1 Set |
| Highlight | automatic bundling machine,bundle tying machine |
||
Product Description

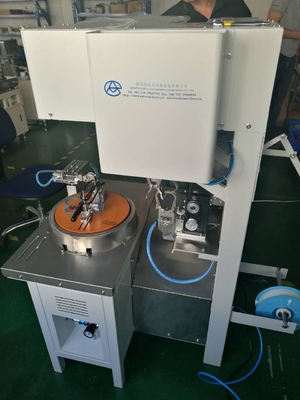

Cable Automatic Transformer Coil Winding Machine Circle Type With Double Bundle
The machine can tie and twist the cable automatic. The Head length, Tail length,Total winding length can be adjussted. Easy to operated and labors are saved and improving output.
Features
Newest style,circle type with double bundle
For thin and short cable,with or without keeping wire head or tail
Speed can reach 1200pcs/h,save lobar cost
Easy to operate and maintenance
Small size and space-saving
Humanized design, reduce operator fatigue strength
Uses imported original Japan SMC air cylinder,full set of AirTAC Pneumatic components
Suits for the wire that required packaging delicate and cabinet.
Specification
| Model | AM106 |
| Productivity | 1200 PCS/h |
| Available wire | USB/DC cable |
| Function | Circle With Double |
| Available tie wire | Encapsulated iron core |
| Available cable length | ≤6M |
| Main electric motor | Servo/stepper motor |
| Available cable size | ≤3.3MM |
| Tail keep length | >20MM |
| Winding spacing | 60-80MM |
| Power | 1500W |
| Winding diameter | ≤18MM |
| Head keep length | 20-60MM |
| Air pressure | 0.4-0.55Mpa |
