120W Wire Stripping Equipment / 2mm - 20mm Length Wire Twisting Machine
| Certification | CE |
|---|---|
| Model Number | AM432 Wire Stripping and Twisting Machine |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Export standard wood package,cover wtih steel tie on its surface. |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 200 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Suitable Wires | Multi Strand Wires, Inner Cores Of Multi Conductor Cables | Wire Size | Φ1-4mm ( AWG14 - AWG22 ) |
|---|---|---|---|
| Stripping Length | 2-20mm | Power Rating | 120W |
| Net Weight | 15Kg | Dimension | 300*200*160mm |
| Highlight | wire stripper machine,wire stripping equipment |
||
Product Description

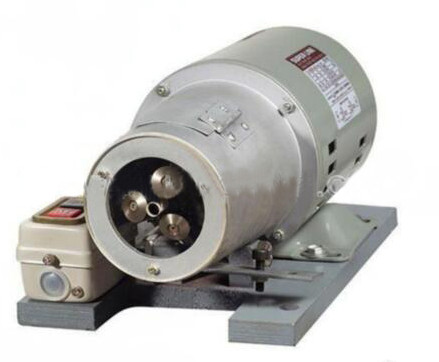

120W Wire Stripping Equipment / 2mm - 20mm Length Wire Twisting Machine
Feature :
1. This wire stripping and twisting machine is especially designed for precessing inner cores of multi conductor cables. It is easy to operate, for entire range of Wire sizes without any blade change.
2. Adjusting the size of rotation blade: adjusting the height of the screw at the right of the machine, until it can not hurt the wire, if it injury the wire you should adjust the blade edge to large.
3. Adjusting the stripping and twisting length: adjusting the distance between the blade and mandrill witch in the circle blade, through this way you can adjust the length.
4. adjusting the clamp iron wire at the inside of the circle blade according to the thickness of the peal of the wire, if the wire is twisted loosen, please shorten the distance between the iron wire and blade.
5. You’d better fix the foot board under the work plate, so that for convenient operation, and increase efficiency.
6. If there is any wear and tear on the blade, just turn it to the other direction, it cans extent the using life.
Specifications:
| Suitable Wires | Multi strand wires, inner cores of multi conductor cables |
| Wire Size | Φ1-4mm ( AWG14 - AWG22 ) |
| Stripping Length | 2-20mm |
| Power Rating | 120W |
| Net Weight | 15Kg |
| Dimension | 300*200*160mm |

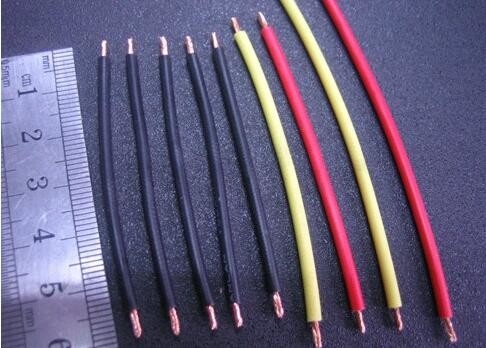

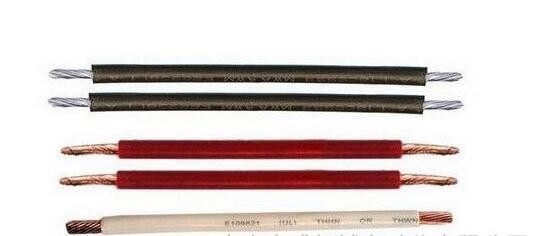

Image for Product
Image for Product
