50HZ / 60HZ 350W Wire Processing Machine Max Wildth 12P With Cable Splitter
| Certification | CE |
|---|---|
| Model Number | AM608 Cable splitter machine max wildth 12P ( with cable splitter function ) |
| Minimum Order Quantity | 1 Set |
| Price | negotitation |
| Packaging Details | Export standard wood package,cover wtih steel tie on its surface. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 33KG | Available Wire Size | Cable 12P Widest Splitter |
|---|---|---|---|
| Voltage | AC110V / 220V / 50 / 60Hz | Power | 350W |
| Dimension | 420*390*280mm | Cutting Length | 1-150000mm |
| Cutting Tolerance | ±9( 0.002XL )mm | Max Conduit Diameter | 100*22*2.8mm |
| Highlight | wire processing equipment,cable Processing Machine |
||
Product Description

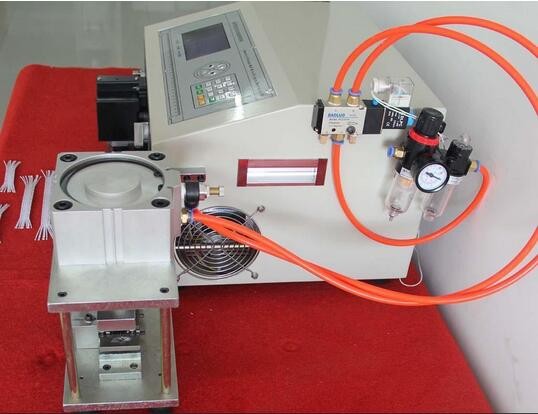

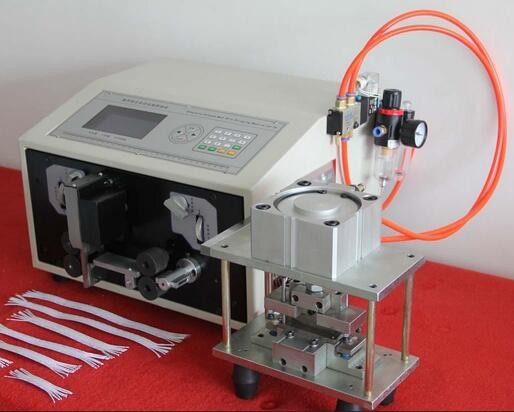

50HZ / 60HZ 350W Wire Processing Machine Max Wildth 12P With Cable Splitter
Feature
Welcome to Cable cutting and stripping machine store. You are bidding on a autoamtic ribbon cable cutting stripping machine. This model will cut and strip 2.2mm wide ribbon cables and flex cables. This machine is easy to use and cut strip cables precisely.
1. Max middle stripping section Thirteen
2. Both head and end stripping accept (50mm)
3. Cutting length 0-50mm-9999mm
4. With the function of middle stripping
5. Both and single end spliting accept
6. Most appropriate for special wire like battery cables or power cords.
7. Designed to allow easy parts assembly.
8. Programmed with a variety of processing programs, no damages gripping outer insulation two levels stripping for multi-core cable
9. Automatic cutting and stripping machine incorporates the most advanced technology.
10. Fully computerized with LCD display and can store up to 248 informations.
11. New improved safety features ensure"zero" wastage.
12. The machine can stop operating automatically if it reaches the end of the coil wire
13. one-year warranty, full-life service
Parameters:
| Available wire size | MAX width 12P |
| Voltage | AC110/220V 50/60HZ |
| Display | LCD screen |
| Power | 350W |
| Dimension | 420*390*280mm |
| Weight | 33KG |
| Cutting length | 1-150000mm |
| Cutting tolerance | ±0.002 *L( Cutting length) |
| Truncation error | Can correct |
| Stripping length | Head:0-50mm Tail:0-50mm |
| Max middle stripping section | 13 stripping |
| Max conduit diameter | 100*22*2.8mm |
| Memory function | Can store MAX 99 program |
| Suitable cable | PVC/Teflon/silicone cable/glass fiber wire etc |
| Blade Material | Hard tungsten steel and HSS |
| Productivity | 3000-5000pcs/h (L=100mm) |
| Drive mode | Four-wheel drive |
