Muti Core Round Jacket Cable Cutting And Stripping Machine 10-80 mm Length
| Place of Origin | China guangdong |
|---|---|
| Brand Name | Aituo |
| Certification | CE |
| Model Number | AM610 |
| Minimum Order Quantity | 1set |
| Price | negotiation |
| Packaging Details | Strong export wooden box package |
| Supply Ability | 50SETS Per month |
Product Details
| Available Wire Size | 4-10mm | Display | LCD Touch Screen |
|---|---|---|---|
| Cutting Length | 150-9999mm | Cutting Tolerance | ±0.002 *L( Cutting Length) |
| Stripping Length | 10-80mm | Function | Cable Cutting Stripping Outer And Inner Cable |
| High Light | cable cutting and stripping machine,wire cutter stripping machine |
||
Product Description

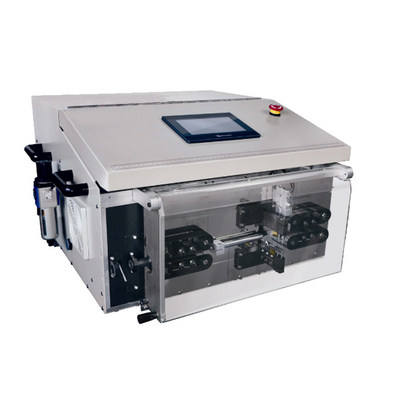

Muti Core Round Jacket Cable Cutting And Stripping Machine 10-80 mm Length
Features
1, AM610 is designed relatively compact and user friendly, and is capable of processing a wide range of wires/cables with diameter from 4-10mm.
2, Fully developed technology plus wearing parts designing allow maximum productivity and long service time.

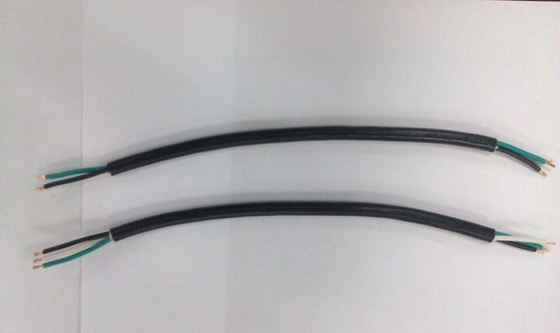

3, This Fully Automatic Cable Cutting and Stripping Machine in simplicity of operation and flexibility of application. No matter what the task, such as 2-core and 3-core jacket cable cutting and stripping and core wire half/full stripping,
4, carries it out with compelling process control and perfect processing performance. With 40 sets of program storage function, simplified the operation process and improved working efficiency.
5, All you have do is to set the cutting length, outer jacket stripping length and inner core stripping length through the LCD touch screen, the machine will run fully automatically, no extra labor cost. AM610 is definitely the most profitable choice for you.
Specification
| Available wire size | 4-10mm |
| Voltage | 220V/50HZ |
| Display | LCD screen |
| Power | 300W-600W |
| Dimension | 420*390*280mm |
| Weight |
130KG
|
| Cutting length | 150-9999mm |
| Cutting tolerance | ±0.002 *L( Cutting length) |
| Truncation error | Can correct |
| Stripping length | 10-80mm |
| Memory function | Max 40 sets |
| Suitable cable |
PVC/Teflon/silicone cable/glass fiber wire etc |
| Productivity | (Cutting length=100mm)1000-2000 pcs/H |
