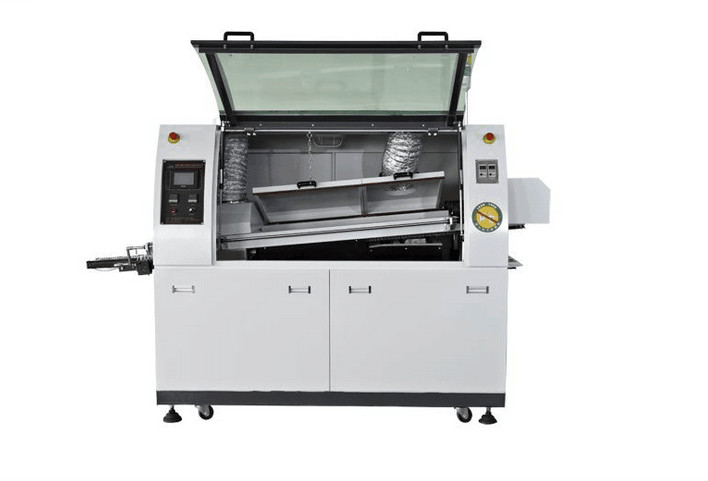

Small Table Top Dual Wave Soldering Machine Lead Free 4-6° Welding Angle

Small Table Top Dual Wave Soldering Machine Lead Free 4-6° Welding Angle​

Features:

· 1. lead-free process, an open-top style streamlined shell design, beautiful appearance. Front and rear doors can be removed to provide maximum space for maintenance, easy clean-up;

· 2. Three separate 1.8 m preheating section, all hot air preheating, with spotlights compensation device, the PCB to obtain good welding results;

· 3. The patent-type titanium alloy die-casting claw chain, non-stick tin, never deformation, and long life;

· 4. The whole observation window for easy operation and maintenance;

· 5. Tin stove down and out, with auto and manual adjustment. The use of back design to prevent misuse damages the machine;

· 6. With a cooling module, the temperature compensation module, suitable for lead-free solder and a variety of process requirements;

· 7. The latest invention of ultra-smooth, ultra-filtered source generator significantly weakened the flow of shock flow and turbulence within the tin production, tin wave stable, and oxidation is greatly reduced, maintenance is simple;

· 8. Driving organizations to adopt sophisticated modular design, transmission accuracy, long life and easy maintenance;

· 9. Rosin spray device can be pulled out, and removable for easy cleaning and maintenance;

· 10. Isolated spray device, flux fumes from the exhaust air duct dedicated;

· 11. A powerful library function parameters, various types of PCB process parameters can be invoked on demand operating;

· 12. A professional industrial computer control system to ensure reliability and stability;

· 13. The user can set the date, time and temperature parameters for Automatic Switcher;

· 14. Self-diagnosis system failure, malfunction automatically, troubleshooting queries at any time;

· 15. The heating temperature using PID closed-loop control, temperature control is stable and reliable;

· 16. Closed loop spray system, automatic tracking, automatic spray width and spray time to adjust, and spray as needed to extend the time set in advance and;

· 17. Over automatically from the wave plate, to minimize the amount of tin oxide;

· 18. The transport system with force limiters + limiting clutch double protection device;

· 19. Short circuit and overcurrent protection system;

· 20. The transport system closed-loop control. Variable speed, precise control of PCB preheating and welding time;
