4.35Kw Vertical Injection Molding Machine 4.4 Ton 190mm Injection Rate

  • 4.35Kw Vertical Injection Molding Machine 4.4 Ton 190mm Injection Rate
  • 4.35Kw Vertical Injection Molding Machine 4.4 Ton 190mm Injection Rate
  • 4.35Kw Vertical Injection Molding Machine 4.4 Ton 190mm Injection Rate
Certification CE
Minimum Order Quantity 1 set
Price negotiation
Packaging Details export standard wooden package
Delivery Time 10-15 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 4.4 Ton Dimension 3*1.2*2.1m
Motor Power 7.5/10 HP Heating Power 4.35kw
Screw Diameter 32mm 38mm 42mm Injection Rate 190mm
Highlight

vertical injection moulding machine

,

clamping system injection molding machine
Leave a Message
Product Description

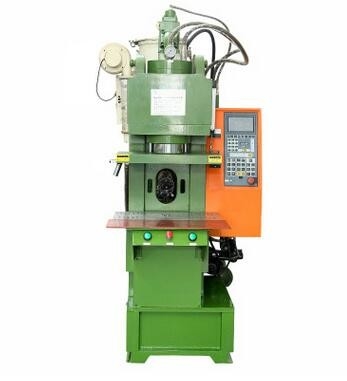

4.35Kw Vertical Injection Molding Machine 4.4 Ton 190mm Injection Rate​



Specification


Injection Unit		 Screw Diameter mm 32 38 42
Injection Pressure Kg/cm² 1506 1063 870

Theoretical Shot Volume		 Cm³ 153 215 263

Max. Shot Weight(PS)		 g 139 196 239

Max. Shot Weight(PS)		 cm2/sec 52 75 92
Injection Rate mm 190
Nozzle Stroke mm 170

Nozzle Contact Force		 tons 1.5
Screw Speed r.p.m 0-175
  Platen Size mm 480*280
Clamping Force tons 55

Min mold height		 mm 215

openning stroke		 mm 200
max open daylight mm 415
Ejector force tons 1.5
Ejector Stroke mm 135

Electrical Equipment&Ceneral
Oil Tank Caoacity		 l 280
Shipping Size m 3.1*1.3*2.3
Shipping Weight tons 5

Cooling Water Consumption		 L/hr 800-1000
Drive Motor KW/HP 7.5/10
heater KW 4.35
Dimension m 3*1.2*2.1
Weight tons 4.4

4.35Kw Vertical Injection Molding Machine 4.4 Ton 190mm Injection Rate 0

OUR COMPANY



Shenzhen Aituo Automation Device Co., Ltd is a production-oriented high-tech company, which in the field of automation machine and equipment with strong technological, has a strong research&design team. We have advanced production equipment, professional technical personnel and experienced domestic and foreign sales, and the ISO quality management system.Our productions mainly are wire terminal processing equipment, which includes: Automatic USB soldering machine, automatic wire strip&tin machine, full/semi automatic cable bundling machine, automatic wire stripping cutting machine, automatic teminal crimping machine, gas wire stripping machine, copper strap machine and so on. Especially, automatic USB soldering machine and automatic wire strip&tin machine are our latest research and development new equipment, which greatly improve production efficiency, and greatly save production cost.

For many years, we adhere to the business philosophy“Quality first, integrity innovation, to meet customer demands”. Our company and products have been widely recognized by customers at home and abroad. And our products with high quality and competitive price have been exported to India, Japan, Korea, Singapore, the United States, Argentina, Brazil, France, Poland, the Czech republic, Turkey, Italy and so on.

Scientific and technological progress and customers’ satisfaction have become our growth momentum and aggressive gravity, we will provide with higher-quality products, more professional services, more convincing products, cheaper prices to return customers. Welcome friends from all walks come to visit, guidance and business negotiations, we are sincere cooperation, and create success.







OUR SERVICE



---Purchase guidance

If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.



---After Sale Service

Don’t worry, we are here to help. AM provides life time after sale support to our customers including operation guidance, parts replacement, maintenance support. Please feel free to contact us!



--- Technical Support

In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. AM engineers are here for your assistance.



---OEM

AM provides OEM services to our customers.
