35T Vertical Injection Molding Machine 32 Mm Screw Diameter For Common Plugs
| Certification | CE |
|---|---|
| Model Number | AM701-3.5T |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Export standard wood package,cover wtih steel tie on its surface. |
| Delivery Time | 7-15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AM701-3.5T | Screw Diameter | ¢32 Mm |
|---|---|---|---|
| Injection Capacity | 96cm² | Injection Weight | 110g |
| Max.shot Weight | 58cc/s | Screw Stroke | 0-200mm |
| Screw Speed Rotation | 0-150r.p.m. | Nozzle Contact Force | 2.4tf |
| Highlight | vertical plastic injection moulding machine,clamping system injection molding machine |
||
Product Description
35T Vertical Injection Molding Machine 32 Mm Screw Diameter For Common Plugs
Features:
1. Vertical clamping / injection, suits for injection of common plugs and Small electronic
parts.
2. Two or three-sections temperature control, adjustable injection speed and screw speed,
is suitable for various kinds of precision engineering plastic part shaping.
3. High speed with low pressure clamping, the clamping will open when there is
exceptional condition.
4. Fixed Lower mould and movable upper die. Strong polarization for the insert items, the
ejection device is included.
5. Adopts imported fittings, low noise, high efficiency, high life-span, unique design, safe
easy to operate and maintenance.
6. Can add single sliding or double sliding to improve the production and safety.
Specification:
| Model | AM701-3.5T |
| Screw diameter | ¢32 mm |
| Injection capacity | 96cm² |
| Injection weight | 110g |
| Max.shot Weight | 58cc/s |
| Screw stroke | 0-200mm |
| Screw speed rotation | 0-150r.p.m. |
| Nozzle contact force | 2.4tf |
| Clamping force | 35tons |
| Clamping stroke | 215mm |
| Max mold space | 360mm |
| Min.thickness of mold | 145mm |
| Hydraulic ejector force | 0.7tf |
| injector stroke | 28mm |
| Injection pressure | 1367kg/cm² |
| Oil tank capacity | 160L |
| Drive motor | 7.5kw |
| Dimensions | 1400x1100x3200mm |
| weight | 1.1t |

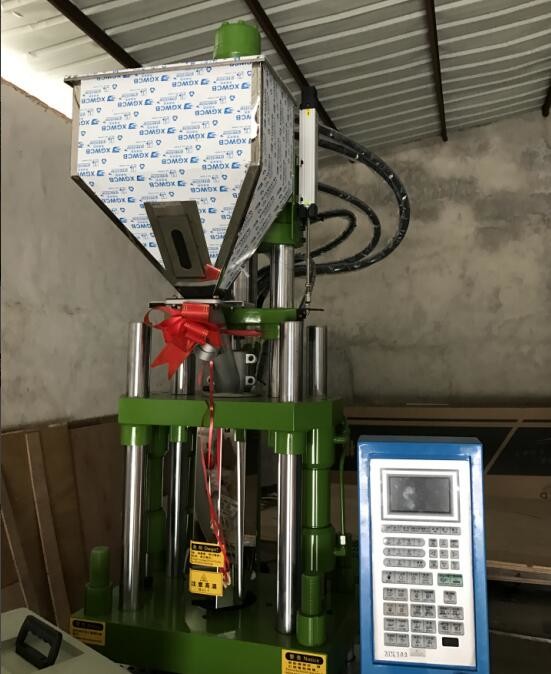

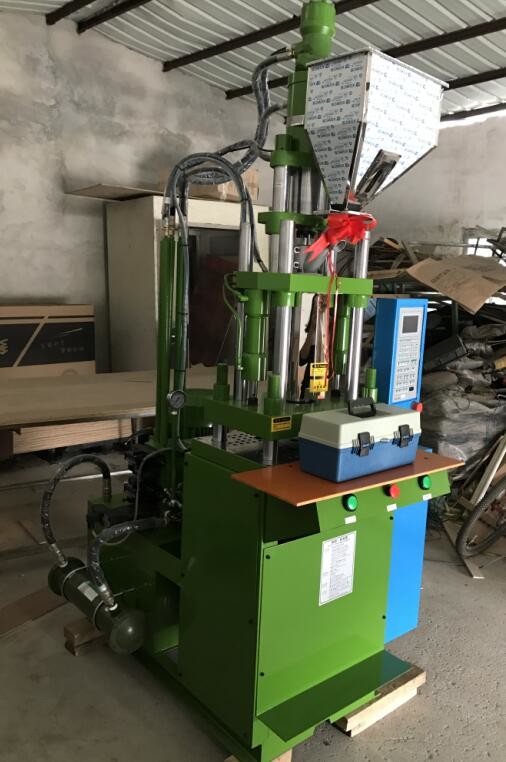

Image for Machine

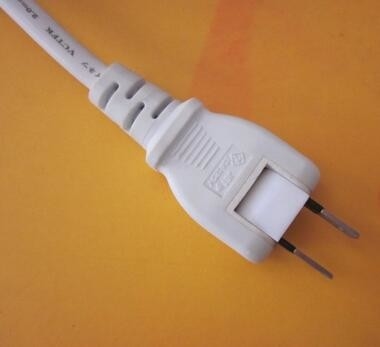

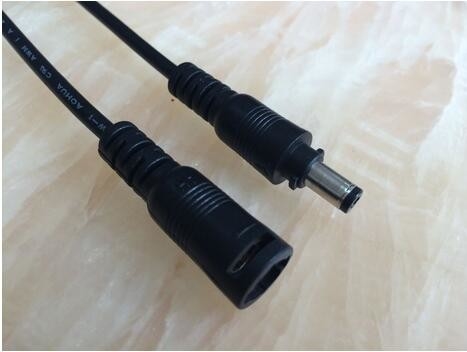

Image for Product
