Single / Double Head Wire Crimping Machine 0.4-0.6 Mpa Filtered Dry Air

  • Single / Double Head Wire Crimping Machine 0.4-0.6 Mpa Filtered Dry Air
  • Single / Double Head Wire Crimping Machine 0.4-0.6 Mpa Filtered Dry Air
Certification CE
Model Number AM210
Minimum Order Quantity 1set
Price negotiation
Packaging Details Strong export wooden box package
Supply Ability 50SETS Per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cutting Length 72-9999mm Single Wire Width 0.8-2.5mm
Cutting Precision ±0.5mm Power 220V 50HZ
Weight 527KG Dimension 1850*760*1830mm
Highlight

automatic crimping machine

,

cable crimping machine
Leave a Message
Product Description

Single / Double Head Wire Crimping Machine 0.4-0.6 Mpa Filtered Dry Air





Max. Wire pin

  20P
Max. Wire width  28mm
Single wire width  0.8-2.5mm
Cutting length  72-9999mm
Cutting precision  ±0.5mm
Stripping length  2-10mm
Crimping force  20KN
Capacity  18,000PCS/H(20P flat wire)
Power  220V 50HZ
Motor  0.75KW
Air supply  0.4-0.6Mpa, filtered and dry air
Weight  527KG
Dimension
 1850*760*1830mm
Function   Single, double ends crimping, interval crimping, positive and negative crimping

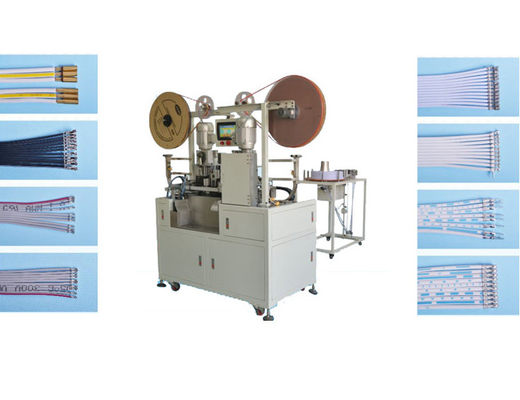

Single / Double Head Wire Crimping Machine 0.4-0.6 Mpa Filtered Dry Air 0



Features



  AM210 one or two head flat muticore ribbon cable cutting stripping terminal crimping machine



1 . Wide applying range: PH, XH, EH, ZH, SCN, SM, VH, Dupont and other strip connector and communicating terminaL



2. Good Stability: Eccentric shaft and cam transmission structure, balance crimping force, tide crimping effect and high rate of finished products;

3 . High precision: servo motor driver control the movement of the flat wire, high precise terminal crimping control;

4. Crimping mode: steering structure, the crimping direction on the two ends of the wire can be changed;


5 . Automation: wire dividing, cutting, stripping, crimping are finished at one time without any labor force, and save the production cost;

6 . High efficiency: Max, capacity 18,000 PCS/H, 24 hours working;


7.  Simple operation: parameters setting by touching screen, operation is easy to learn, one worker can operate several machines at the same time:

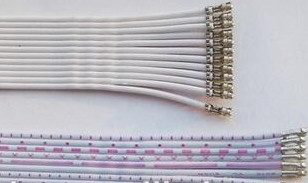

Single / Double Head Wire Crimping Machine 0.4-0.6 Mpa Filtered Dry Air 1
