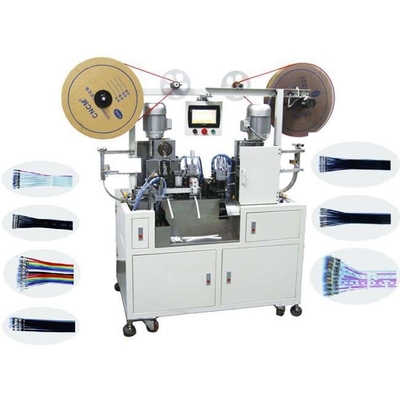

18000 PCS / H Wire Crimping Machine 20KN Crimping Force Servo Motor Driver
| Certification | CE |
|---|---|
| Model Number | AM210 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Packed in strong export wooden box. |
| Delivery Time | 15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 Sets Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max. Wire Pin | 20P | Max. Wire Width | 28mm |
|---|---|---|---|
| Single Wire Width | 0.8-2.5mm | Cutting Length | 72-9999mm |
| Cutting Precision | ±0.5mm | Stripping Length | 2-10mm |
| Crimping Force | 20KN | Capacity | 18,000PCS/H(20P Flat Wire) |
| Highlight | automatic crimping machine,cable wire crimper |
||
Product Description
18000 PCS / H Wire Crimping Machine 20KN Crimping Force Servo Motor Driver
Product feature
No.1 Wide applying range: PH, XH, EH, ZH, SCN, SM, VH, Dupont and other strip connector and communicating terminal;
NO.2 Good Stability: Eccentric shaft and cam transmission structure, balance crimping force, tide crimping effect and high rate of finished products;
NO.3 High precision: servo motor driver control the movement of the flat wire, high precise terminal crimping control;
NO4.Crimping mode: steering structure, the crimping direction on the two ends of the wire can be changed;
NO.5 Automation: wire dividing, cutting, stripping, crimping are finished at one time without any labor force, and save the production cost;
NO.6 High efficiency: Max, capacity 18,000 PCS/H, 24 hours working;
NO.7 Simple operation: parameters setting by touching screen, operation is easy to learn, one worker can operate several machines at the same time:
| Technical Parameters | |
| Max. Wire pin | 20P |
| Max. Wire width | 28mm |
| Single wire width | 0.8-2.5mm |
| Cutting length | 72-9999mm |
| Cutting precision | ±0.5mm |
| Stripping length | 2-10mm |
| Crimping force | 20KN |
| Capacity | 18,000PCS/H(20P flat wire) |
| Power | 220V 50HZ |
| Motor | 0.75KW |
| Air supply | 0.4-0.6Mpa, filtered and dry air |
| Weight | 527KGS |
| Dimension | 1850*760*1830mm |
| Function | Single, double ends crimping, interval crimping, positive and negative crimping |
Scientific and technological progress and customers’ satisfaction have become our growth momentum and aggressive gravity, we will provide with higher-quality products, more professional services, more convincing products, cheaper prices to return customers. Welcome friends from all walks come to visit, guidance and business negotiations, we are sincere cooperation, and create success.
