Waterproof 4 In 1 Wire Automatic Crimping Machine Single End 700X 800X1500 mm

  • Waterproof 4 In 1 Wire Automatic Crimping Machine Single End 700X 800X1500 mm
Certification CE
Model Number AM209
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Packed in strong export wooden box.
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage AC220V/50HZ Function Wire Cutting, Stripping , Single-end Twisting, Single-end Waterproof Plug Single-end Crimping
Capacity Single End Crimping 3500pcs/h (Within 100mm) Wire Specification AWG#28-AWG#20
Cutting Length 50mm----9999mm Cutting Accuracy 1mm+cutting Length*0.2%<
Crimping Capacity 2.0T-3.0T Dimension 700W X 800L X 1500H(mm)
Highlight

cable crimping machine

,

cable wire crimper
Leave a Message
Product Description

Waterproof 4 In 1 Wire Automatic Crimping Machine Single End 700X 800X1500 mm​







1. Automatically complete all the production process of Plugging waterproof,

cutting,stripping,twisting andcrimping at one time.
2. Delicated and concentrated design . Small land occupancy area

3. KINCO touching screen display and controling process ,easy to operate .

4. Prompting to change the processes and material .

5. High efficient stepper drive,High precision,high speed.

6. Convenient maintenance

7. High cost performance

8. Fully digital debugging



Type AM-209
Function Wire cutting, stripping , single-end twisting, single-end waterproof plug single-end crimping
Productivity 3500pcs/h (Within 100mm)
Wire specification AWG#28-AWG#20
Cutting length 50mm----9999mm
Cutting tolerance range 1mm+cutting length*0.2%<
Stripping length 0.1mm-----100mm
Crimping force 2.0T-3.0T
Air pressure 4-6kgf (need clean and dry air)
Testing Equipment wire exists or not , terminal exists or not , waterproof plug exists or not, crimp or not, wire blocking and air pressure testing.
Dimension 700W X 800L X 1500H(mm)
Weight 368kg

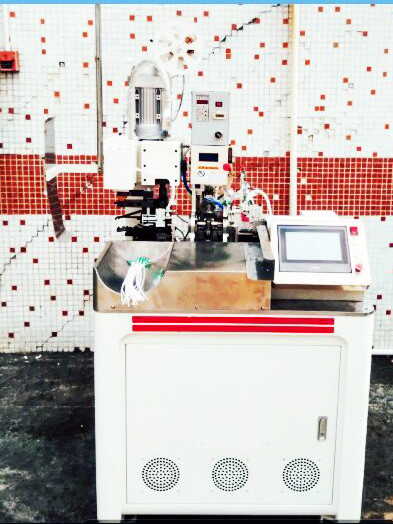

Waterproof 4 In 1 Wire Automatic Crimping Machine Single End 700X 800X1500 mm 0



Shenzhen Aituo Automation Device Co., Ltd is a production-oriented high-tech company, which in the field of automation machine and equipment with strong technological, has a strong research&design team. We have advanced production equipment, professional technical personnel and experienced domestic and foreign sales, and the ISO quality management system.Our productions mainly are wire terminal processing equipment, which includes:Automatic USB soldering machine, automatic wire strip&tin machine, full/semi automatic cable bundling machine, automatic wire stripping cutting machine, automatic teminal crimping machine, gas wire stripping machine, copper strap machine and so on.Especially,automatic USB soldering machine and automatic wire strip&tin machine are our latest research and development new equipment, which greatly improve production efficiency, and greatly save production cost.

For many years, we adhere to the business philosophy”quality first, integrity innovation, to meet customer demands”. Our company and products have been widely recognized by customers at home and abroad. And our products with high quality and competitive price have been exported to India, Japan, Korea, Singapore, the United States, Argentina, Brazil, France, Poland, the Czech republic, Turkey, Italy and so on.

Scientific and technological progress and customers’ satisfaction have become our growth momentum and aggressive gravity, we will provide with higher-quality products, more professional services, more convincing products, cheaper prices to return customers. Welcome friends from all walks come to visit, guidance and business negotiations, we are sincere cooperation, and create success.
